Diagram 24/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


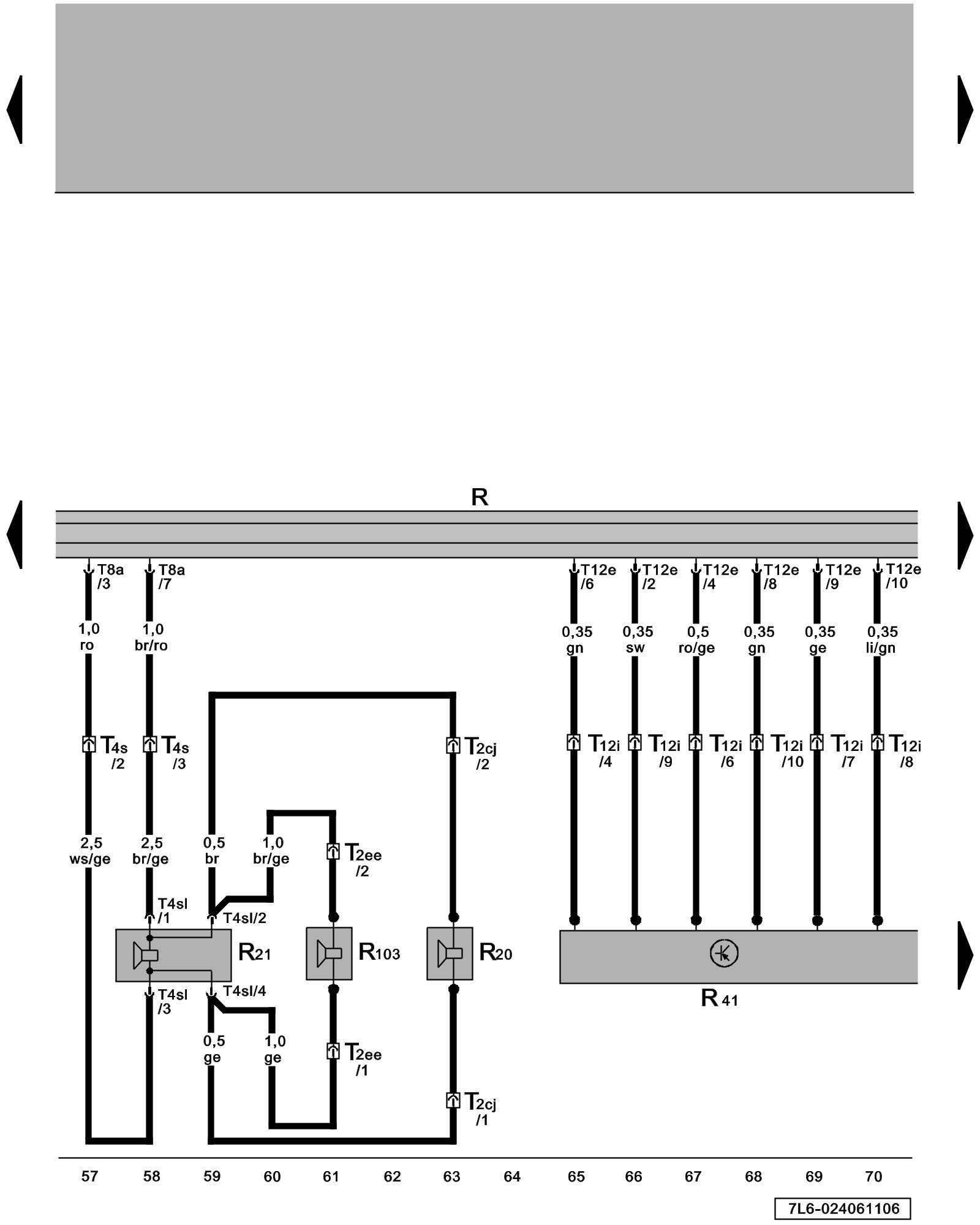

Radio, Left Front Treble Speaker, Left Front Bass Speaker, CD Changer, Left Front Midrange Speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio

R20 - Left Front Treble Speaker RNS 510 Radio Nav System Overview

R21 - Left Front Bass Speaker RNS 510 Radio Nav System Overview

R41 - CD Changer RNS 510 Radio Nav System Overview

R103 - Left Front Midrange Speaker RNS 510 Radio Nav System Overview

T2cj - Double Connector, black, in door

T2ee - Double Connector, black

T4s - 4-Pin Connector, A-pillar, left Overview Of Connector Stations And Connectors

T4sl - 4-Pin Connector, black

T8a - 8-Pin Connector, brown

T12e - 12-Pin Connector

T12i - 12-Pin Connector, black, near CD changer
