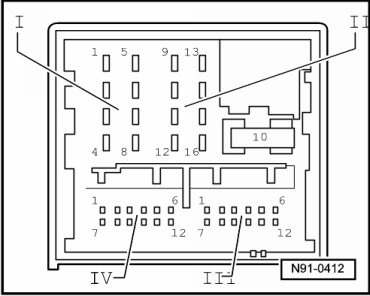

Multi-Pin Connector 3, 12-Pin, Line-Out Audio Signals and Telephone Audio Input Signals

Multi-Pin Connector 3, 12-Pin, Line-Out Audio Signals and Telephone Audio Input Signals





- 15 not used
6 Telephone audio input signal, negative
-711 not used
12 Telephone audio input signal, positive
