Parking Aid Control Module (J446)

Parking Aid Control Module (J446)

The Parking Aid Control Module is located behind side panel trim in luggage compartment, left side.

Removal

- Turn off the ignition and all electric consumers and remove the key.

- Remove left side panel trim.

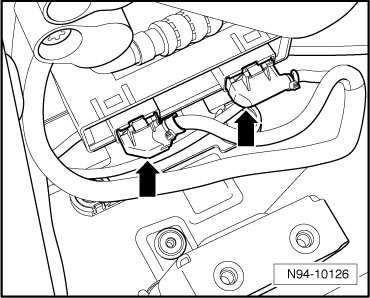

- Disconnect connectors - arrows -.

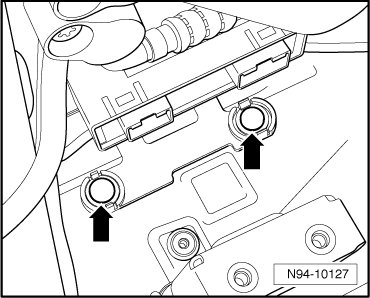

- Pry out pins - arrows - from clips.






- Remove Parking Aid Control Module together with bracket out of vehicle.

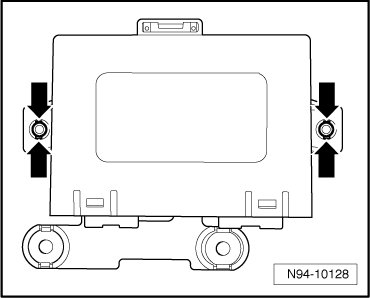

- Disengage retaining tabs - arrows - and remove Parking Aid Control Module from bracket.






Installation

Install in reverse order of removal.
