Access/Start Authorization Antenna In Rear Bumper (R136)

Access/Start Authorization Antenna In Rear Bumper (R136)

• Access/Start Authorization Antenna in rear bumper (R136) has two parts. The first part is located on left side of rear bumper. The second part is located on right side of rear bumper.

• No coding, basic setting or adaptation is necessary if Access/Start Authorization Antenna in rear bumper is replaced.

Removal

- Turn off the ignition and all electric consumers and remove the key.

- Remove rear bumper cover.

- Disconnect connectors - arrows - of antennae.






- Remove antennae - 1 - and - 2 - from foam piece of bumper carrier.

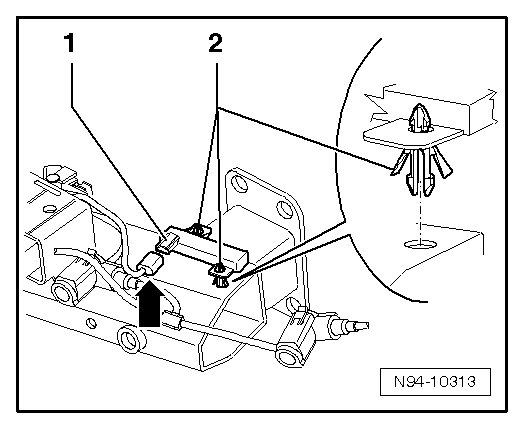

• Depending on equipment, second part of antenna - 1 - can be secured directly to bumper carrier with two clips - 2 -.






Installation

Install in reverse order of removal.
