From 11.04 in USA and Canada, the central locking and anti-theft alarm system antenna is a roof antenna.

• It is not possible to repair the antenna, since this would impair the reception quality.

• If damaged, it is necessary to replace the central locking and anti-theft alarm system antenna. Refer to Electronic Parts Catalog (ETKA).

Removal

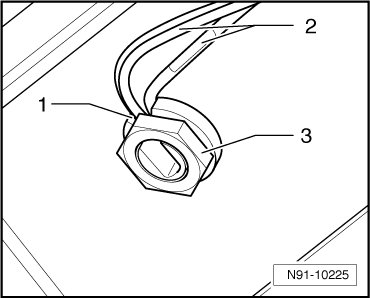

- Lower the rear of the headliner so the antenna base can be accessed.

- Disconnect the antenna wire connector - 1 -.






- Loosen the antenna wire - 2 - from all wiring retainers.

- Remove the nut - 3 - and remove the central locking and anti-theft alarm system antenna - 1 - upward from the vehicle roof.






Installation

- Install in reverse order of removal. Note the following:

- Secure the new antenna wire in the wiring retainers to prevent rattling noises.
