Fixed Door Window

Fixed Door Window

Removing






- Remove door trim.

Remove the window guide. Refer to => [ Window Guide ] Window Guide

Remove the trim. Refer to => [ Trim Panel ] Trim Panel

Window recess seal, removing, refer to => [ Window Recess Seal ] Window Recess Seal.

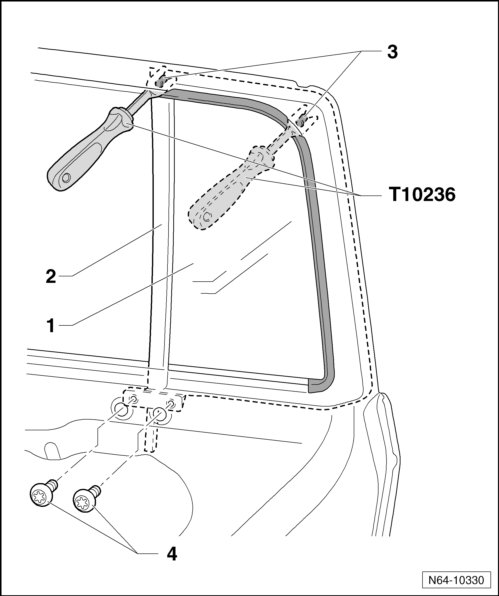

- Remove the bolt - 4 -.

- Remove the clips using the Release Tool (T10236).

- Remove the door window glass - 1 - together with the brace - 2 -.

Installation

• Inspect the clips for damage; if necessary, replace the fixed door window glass.

- Place the door window glass in the installation position.

- Press the glass onto the door until the clips audibly latch.

- Tighten the bolts. Tightening specification: 8 Nm.
