Door Window

Door Window

Removing






• Window recess seal is removed.

• The time is removed.

- Remove rear door trim.

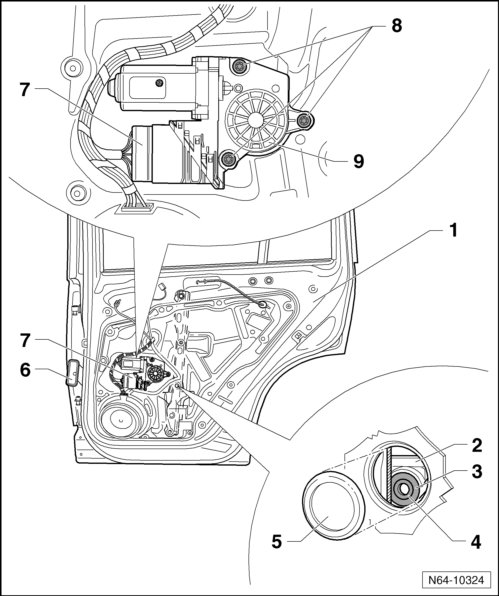

- Pry out cover caps - 5 -.

- Lower door window until spreader pin - 4 - and spreader plug - 3 - are accessible in window regulator cut-out.

• If the work step is not possible due to a malfunction via the electrical window regulator, then the window regulator - 9 - can be disconnected - 8 -, in order to push the window down.

- Install a 5 mm bolt (approximately. 70 mm long) into the spreader pin - 4 - and pull bolt out of spreader plug - 2 -.

- Screw a 8 mm bolt (approx. 80 mm long) into spreader plug - 3 -.

• When screwing the bolt into spreader plug, do not use excessive force on the plug otherwise it may fall inside into the door.

- Pull the spreader plug - 2 - out of the window regulator guide - 1 - and out of the window.

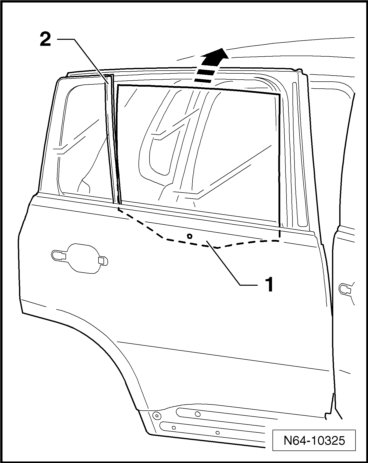

- Pull door window - 1 - upward - arrow - at an angle toward vehicle exterior out of window recess and window frame - 2 -.





Installing

• For reasons of clarity, the subframe is not depicted in the illustration.

• Spreader plug and spreader pin must always be replaced when performing assembly work on door window.

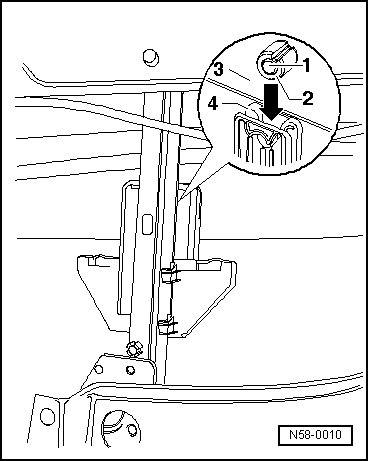

• Before inserting spreader plug - 2 - and spreader pin - 1 -, check window - 3 - for damage.

- Center the spreader plug - 2 - and insert it with the window - 3 - removed.





- Press spreader pin - 1 - flush into spreader plug - 2 -.

- Guide door window - 3 - into door and insert door window into slot of window regulator guide - 4 -.

- Using a light pressure from above - arrow -, engage window - 3 - into window regulator - 4 -.

- Continue by performing the steps used in removal in reverse order.

• Check the window function before installing the door trim.
