Installing

Installing

Install in reverse order of removal. However, important steps should be named here:

- Make sure the centering sleeves are seated correctly between engine and transmission.

- Position the transmission, possibly readjusting the transmission mount.

- Now, install an engine/transmission bolt.

- Install all torque converter bolts and tighten them to specification. Refer to => [ Tightening Specifications ] Tightening Specifications.

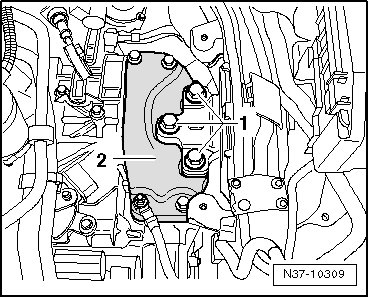

- Tighten the transmission mount bracket - 2 - to transmission bolts to specification. Refer to => [ Tightening Specifications ] Tightening Specifications.






- Lift the engine/transmission, install the transmission mount to transmission mount bolts - 1 - and tighten them to specification. Refer to => [ Tightening Specifications ] Tightening Specifications.

- Install the bevel box. Refer to => [ Bevel Box ] Bevel Box.

- Install the exhaust system.

Reverse the sequence when installing the rest of the components.

- Adjust the selector lever cable. Refer to => [ Selector Lever Cable, Adjusting ] Adjustments.

Do not grease the cable.

- Install the air filter housing.

- Check the transmission fluid level. Refer to => [ Transmission Fluid Level, Checking and Filling ] Transmission Fluid Level, Checking and Filling.

- Connect the vehicle diagnostic tester and perform a basic setting. Press the perform basic setting button.

- Press the -> button.

- Press the -> button.
