Connector Station On Engine

Wiring harness connector stations and connectors

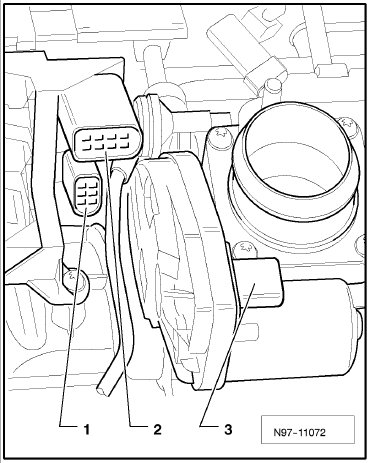

Connector station on engine







1 - 8-pin connector -T8m-
2 - 6-pin connector -T6-

Note::
• T8m and T6 only engine code CAWA, CAWB, CCTA

3 - 6-Pin Connector -T6x-, on throttle valve control module -J338-

Note::
• Only engine code CAVA, CAWA, CAWB, CCTA, BWK
