Diagram 34/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


SB-Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

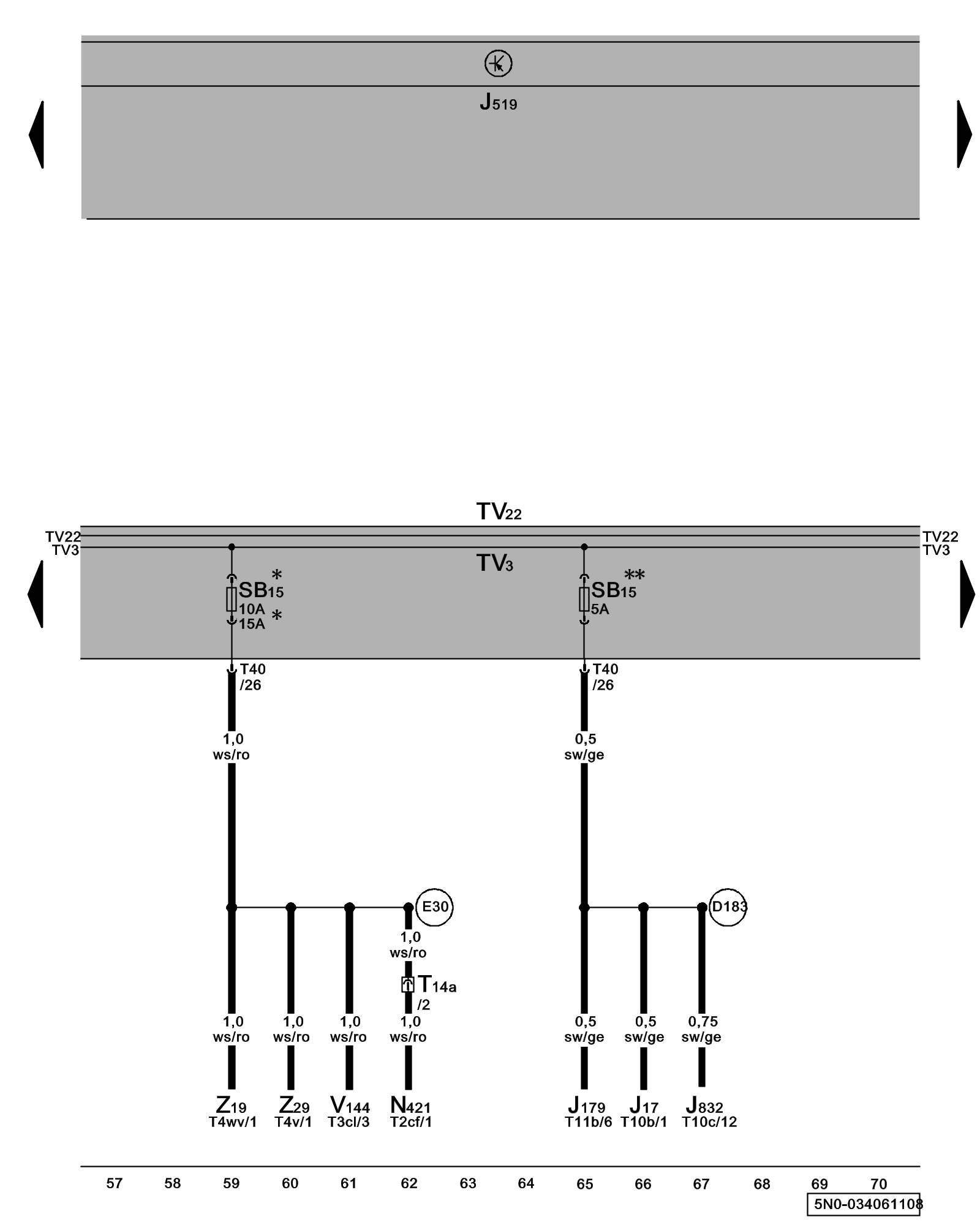

J17 - Fuel Pump (FP) Relay Relay Carrier Overview

J179 - Automatic Glow Time Control Module Control Modules in Engine Compartment

J519 - Vehicle Electrical System Control Module Control Modules in Pass Compartment

J832 - Auxiliary Fuel Pump Relay Relay Carrier Overview

N421 - A/C Compressor Clutch

SB15 - Fuse 15 (on fuse panel B) Overview Of Fuses

T2cf - Double Connector, black

T3cl - 3-Pin Connector

T4v - 4-Pin Connector

T4wv - 4-Pin Connector

T10b - 10-Pin Connector

T10c - 10-Pin Connector

T11b - 11-Pin Connector

T14a - 14-Pin Connector, black, near battery Component Locations

T40 - 40-Pin Connector

TV3 - Terminal 30a Wire Junction

TV22 - Terminal 30a Wire Junction 2

V144 - Leak Detection Pump (LDP) Locations [1][2]Diagrams

Z19 - Oxygen Sensor (O2S) Heater Locations Heated Oxygen Sensor -G39- / Oxygen Sensor Heater -Z19-

Z29 - Oxygen Sensor (O2S) Heater 1 (behind Three Way Catalytic Converter (TWC) Locations Oxygen Sensor and Heater After Three way Catalytic Converter -G130- / -Z29-

(D183) - Connection 4 (87a) (in engine compartment wiring harness)

(E30) - Connection (87a) (in engine wiring harness)

* - Where applicable

** - Only models with diesel engines

Previous Diagram 34/5 (Tracks 43-56)

Next Diagram 34/7 (Tracks 71-84)
