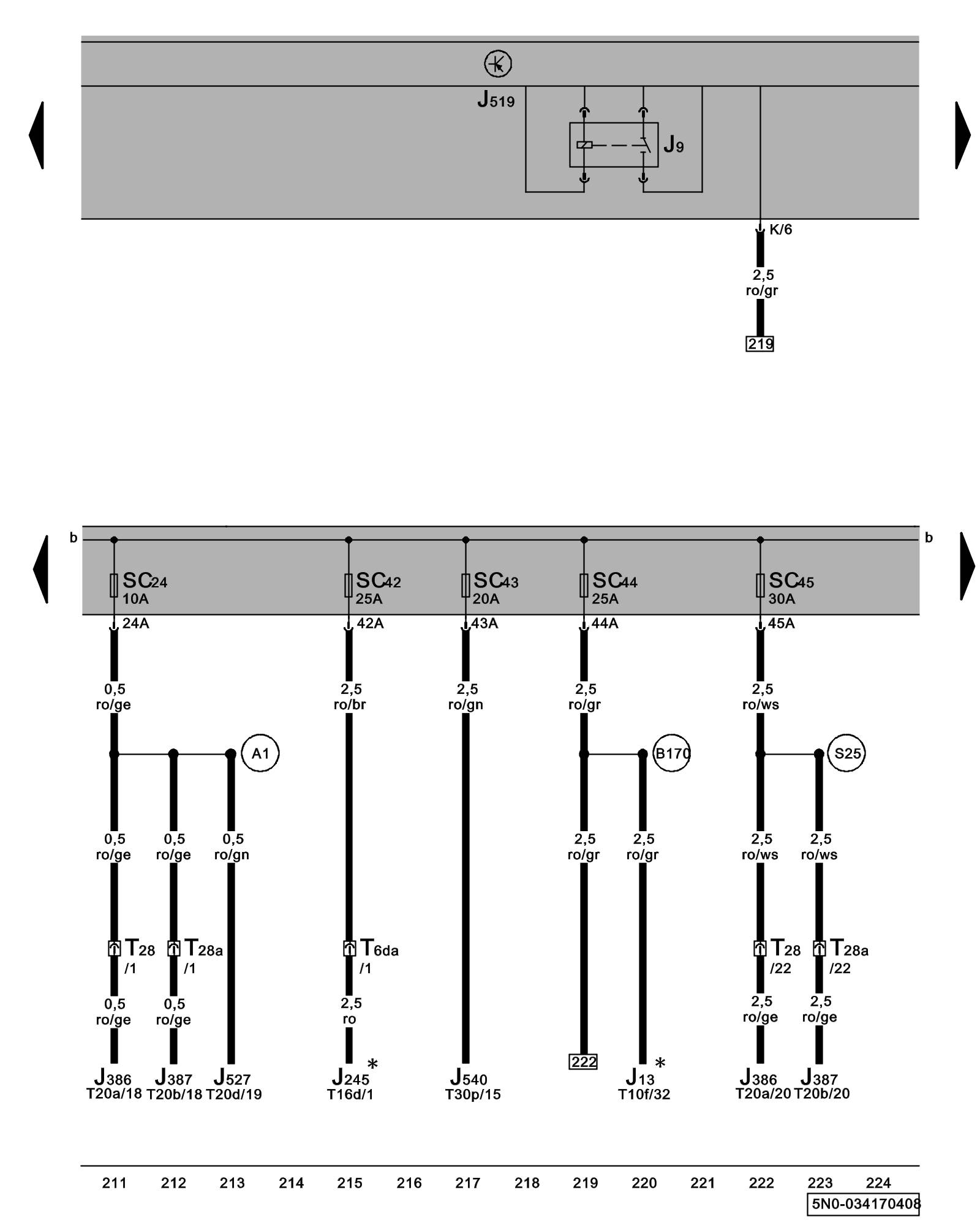

Diagram 34/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


SC-Fuses, Rear Window Defogger Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J9 - Rear Window Defogger Relay

J13 - Fresh Air Blower Relay Relay Carrier Overview

J245 - Power Sunroof Control Module Component Locations [1][2]Diagrams

J386 - Driver's Door Control Module Control Modules in Pass Compartment

J387 - Front Passenger's Door Control Module Control Modules in Pass Compartment

J519 - Vehicle Electrical System Control Module Control Modules in Pass Compartment

J527 - Steering Column Electronic Systems Control Module Control Modules in Pass Compartment Steering Column Electronics Control Module -J527-

J540 - Electro-Mechanical Parking Brake Control Module Control Modules in Pass Compartment [1][2]Diagrams

SC24 - Fuse 24 (on fuse panel C) Overview Of Fuses

SC42 - Fuse 42 (on fuse panel C) Overview Of Fuses

SC43 - Fuse 43 (on fuse panel C) Overview Of Fuses

SC44 - Fuse 44 (on fuse panel C) Overview Of Fuses

SC45 - Fuse 45 (on fuse panel C) Overview Of Fuses

T6da - 6-Pin Connector, black Component Locations

T10f - 10-Pin Connector, black

T16d - 16-Pin Connector Component Locations

T20a - 20-Pin Connector, black

T20b - 20-Pin Connector, black

T20d - 20-Pin Connector, black

T28 - 28-Pin Connector, behind left lower A-pillar trim Component Locations

T28a - 28-Pin Connector, behind right lower A-pillar trim Component Locations

T30p - 30-Pin Connector, black

(A1) - Plus Connection (30a) (in instrument panel wiring harness)

(B170) - Plus Connection 2 (30) (in interior wiring harness)

(S25) - Plus Connection (30a) (in central locking wiring harness)

* - Where applicable
