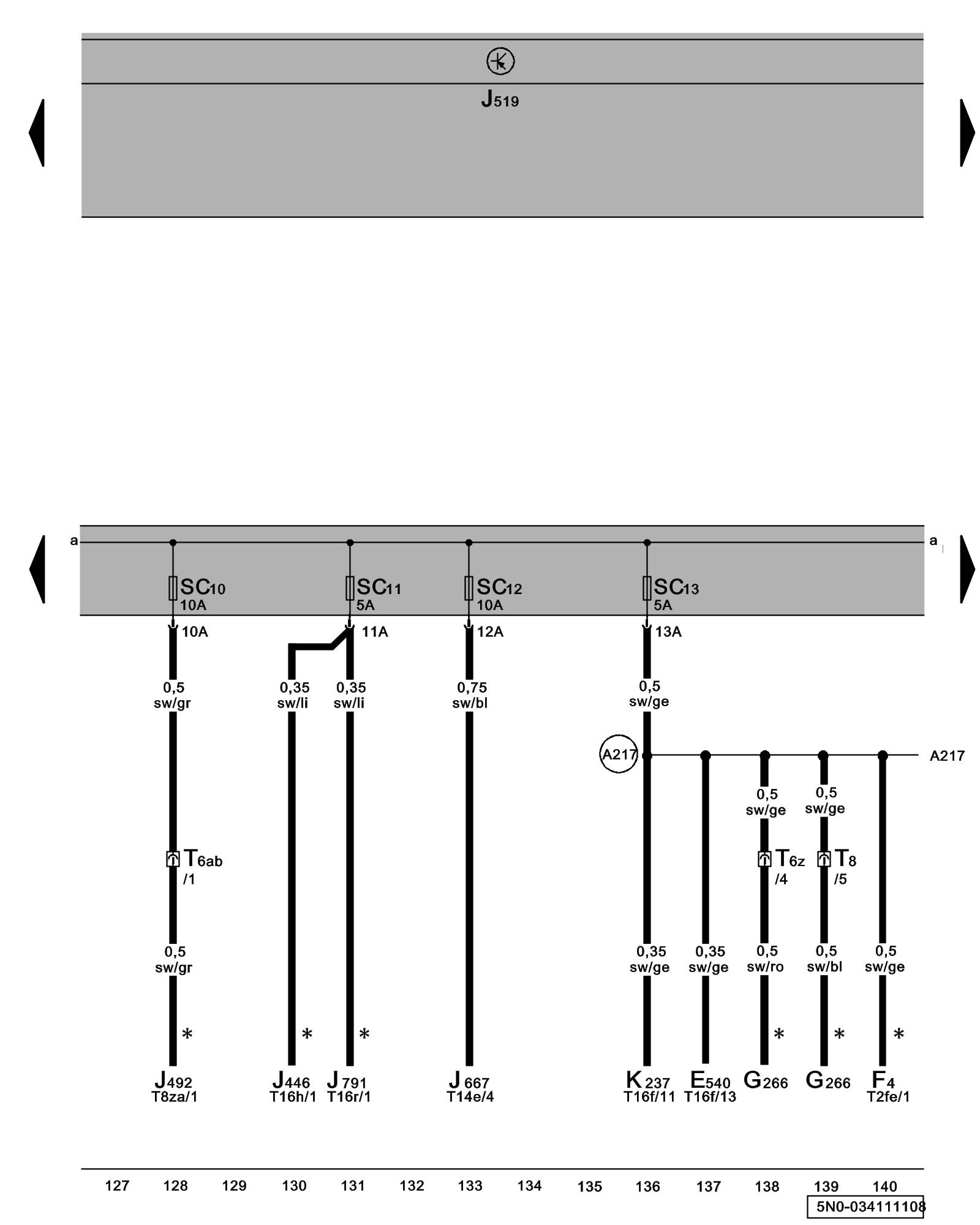

Diagram 34/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


SC-Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E540 - AUTO HOLD- Button Locations

F4 - Back-Up Light Switch Locations

G266 - Oil Level Thermal Sensor Engine Management System

J446 - Parking Aid Control Module Control Modules in Luggage Comp. Parking Aid Control Module -J446-

J492 - All-Wheel Drive Control Module Control Modules in Luggage Comp.

J519 - Vehicle Electrical System Control Module Control Modules in Pass Compartment

J667 - Fuel Tank Lid Unlock Relay Control Modules in Engine Compartment

J791 - Parallel Parking Assistance Control Module Control Modules in Pass Compartment Parallel Parking Assistance Control Module -J791-

K237 - -AUTO HOLD- Indicator Lamp Locations

SC10 - Fuse 10 (on fuse panel C) Overview Of Fuses

SC11 - Fuse 11 (on fuse panel C) Overview Of Fuses

SC12 - Fuse 12 (on fuse panel C) Overview Of Fuses

SC13 - Fuse 13 (on fuse panel C) Overview Of Fuses

T2fe - Double Connector

T6ab - 6-Pin Connector, black Component Locations

T6z - 6-Pin Connector Component Locations

T8 - 8-Pin Connector, black, near starter Component Locations

T8za - 8-Pin Connector

T14e - 14-Pin Connector

T16f - 16-Pin Connector

T16h - 16-Pin Connector, black

T16r - 16-Pin Connector, brown

(A217) - Plus Connection 8 (15a) (in instrument panel wiring harness)

* - Where applicable
