Diagram 34/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

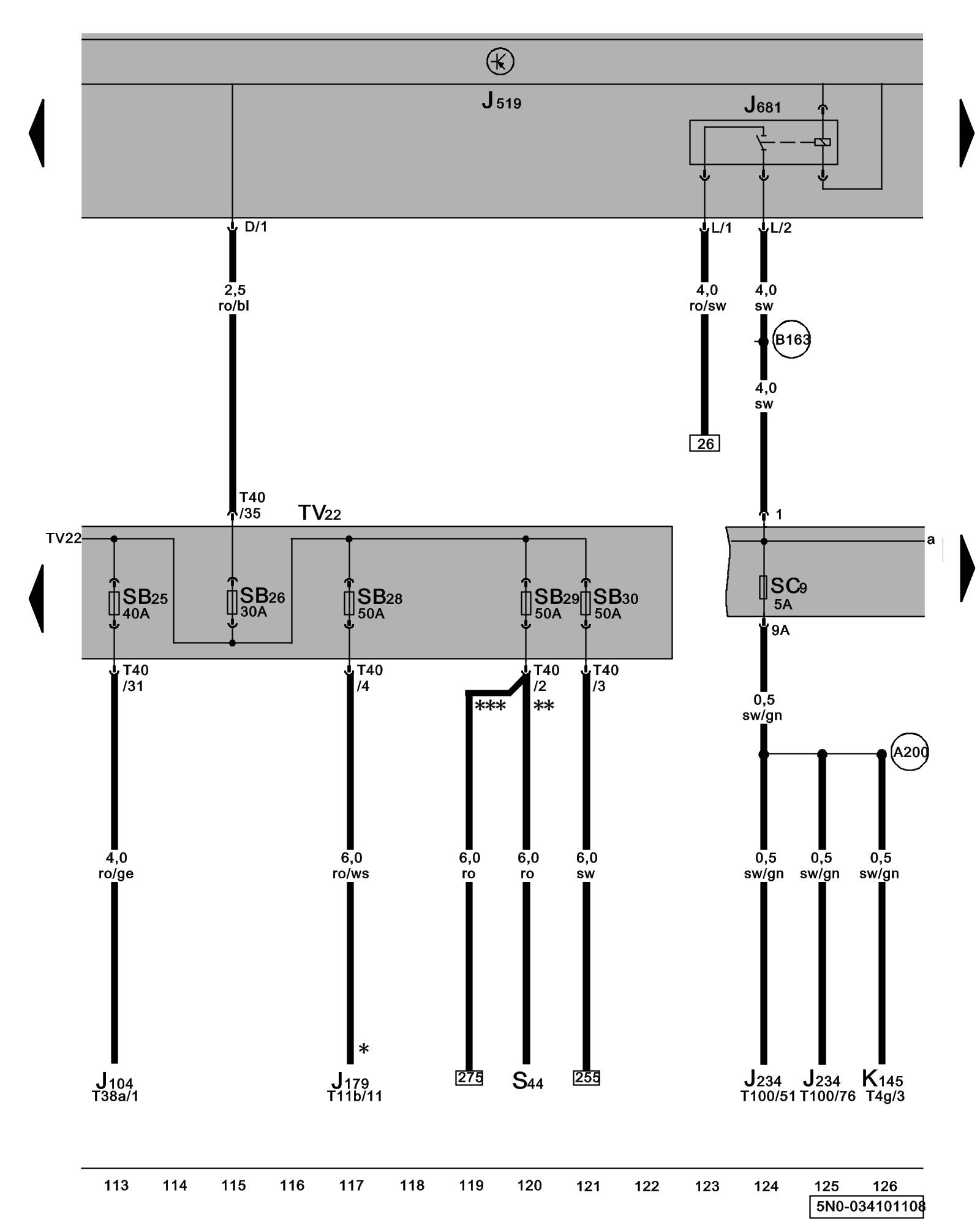

SB-Fuses, SC-Fuse, Power Supply Relay 2 (terminal 15)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS Control Module Control Modules in Engine Compartment [1][2]Diagrams

J179 - Automatic Glow Time Control Module Control Modules in Engine Compartment

J234 - Airbag Control Module Control Modules in Pass Compartment [1][2]Air Bag Control Module

J519 - Vehicle Electrical System Control Module Control Modules in Pass Compartment

J681 - Power Supply Relay 2 (terminal 15) Relay Carrier Overview

K145 - Front Passenger's Airbag Disabled Indicator Lamp Airbag Systems Overview [1][2]Air Bag Deactivation Indicator

S44 - Driver's Power Seat Adjustment Circuit Breaker 1 Overview Of Fuses

SB25 - Fuse 25 (on fuse panel B) Overview Of Fuses

SB26 - Fuse 26 (on fuse panel B) Overview Of Fuses

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses

SB29 - Fuse 29 (on fuse panel B) Overview Of Fuses

SB30 - Fuse 30 (on fuse panel B) Overview Of Fuses

SC9 - Fuse 9 (on fuse panel C) Overview Of Fuses

T4g - 4-Pin Connector, black

T11b - 11-Pin Connector

T38a - 38-Pin Connector

T40 - 40-Pin Connector

T100 - 100-Pin Connector

TV22 - Terminal 30 Wire Junction 2

(A200) - Plus Connection 5 (15a) (in instrument panel wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

* - Only models with diesel engine

** - Through November 2008

*** - From November 2008
