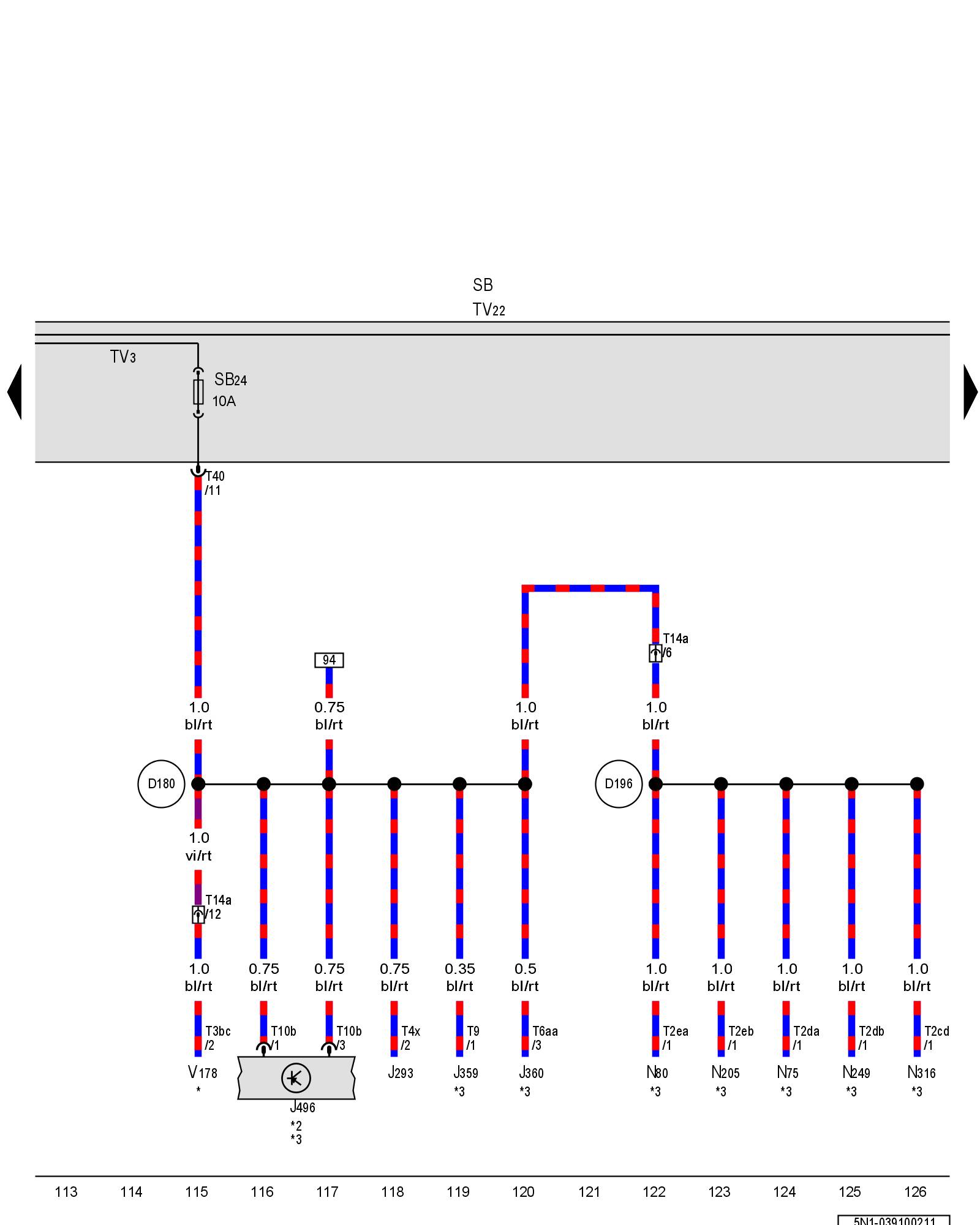

Diagram 39/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel B, Terminal 30a wire junction, Terminal 30 wire junction 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J293 - Coolant fan control module Control Modules in Engine Compartment

J359 - Low heat output relay Relay Carrier Overview

J360 - High heat output relay Relay Carrier Overview

J496 - Auxiliary engine coolant pump relay Relay Carrier Overview

N75 - Wastegate bypass regulator valve Engine Management System [1][2]Diagrams

N80 - EVAP canister purge regulator valve 1 Engine Management System [1][2]Canister Purge Control Valve

N205 - Camshaft adjustment valve 1 Engine Management System [1][2]Diagrams

N249 - Turbocharger recirculation valve Engine Management System [1][2]Diagrams

N316 - Intake manifold runner control valve Engine Management System Diagrams

SB - Fuse panel B Overview Of Fuses

SB24 - Fuse 24 (on fuse panel B) Overview Of Fuses

T2cd - Double connector

T2da - Double connector

T2db - Double connector

T2ea - Double connector

T2eb - Double connector

T3bc - 3-pin connector

T4x - 4-pin connector Component Locations

T6aa - 6-pin connector

TV3 - Terminal 30a wire junction

T9 - 9-pin connector

T10b - 10-pin connector

T14a - 14-pin connector Component Locations

TV22 - Terminal 30 wire junction 2

T40 - 40-pin connector

V178 - Engine coolant circulation pump 2

(D180) - Connection (87a) (in engine compartment wiring harness)

(D196) - Connection 2 (87a) (in engine wiring harness)

* - Only for vehicles with diesel engines

*2 - Depending on equipment

*3 - Only for vehicles with gasoline engine
