Final Drive, Differential (09M,09MA Automatic Transmission)

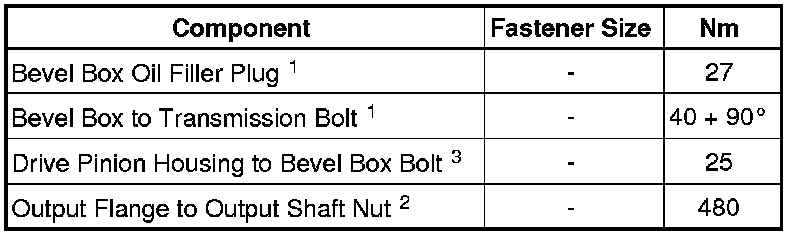

Fastener Tightening Specifications






• 1 Always replace

• 2 Install using liquid locking fluid (D 000 600 A2)

• 3 Tighten in a diagonal sequence

Tiguan:

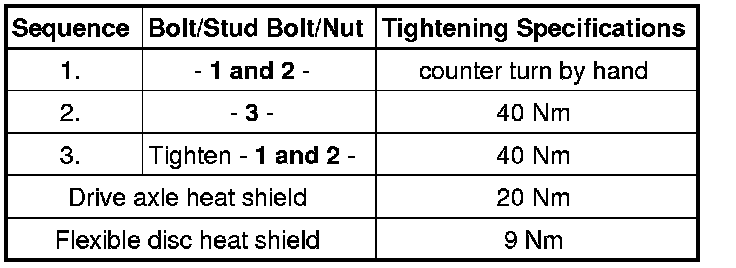

Bevel Box to Transmission Bracket Stud/Nut Tightening Sequence and Specification
