Oxygen Sensor and Heater After Three way Catalytic Converter -G130- / -Z29-






Engine Management System - Connector Views

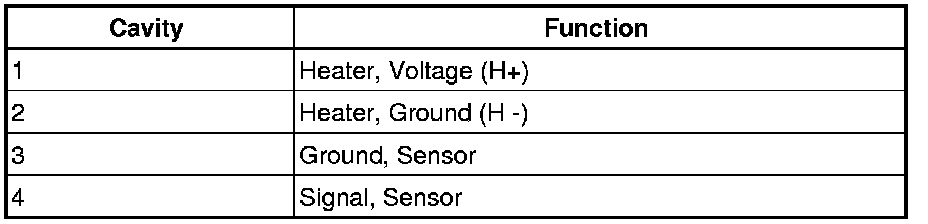

Oxygen sensor and heater after three way catalytic converter -G130- / -Z29-



2.0L engine
