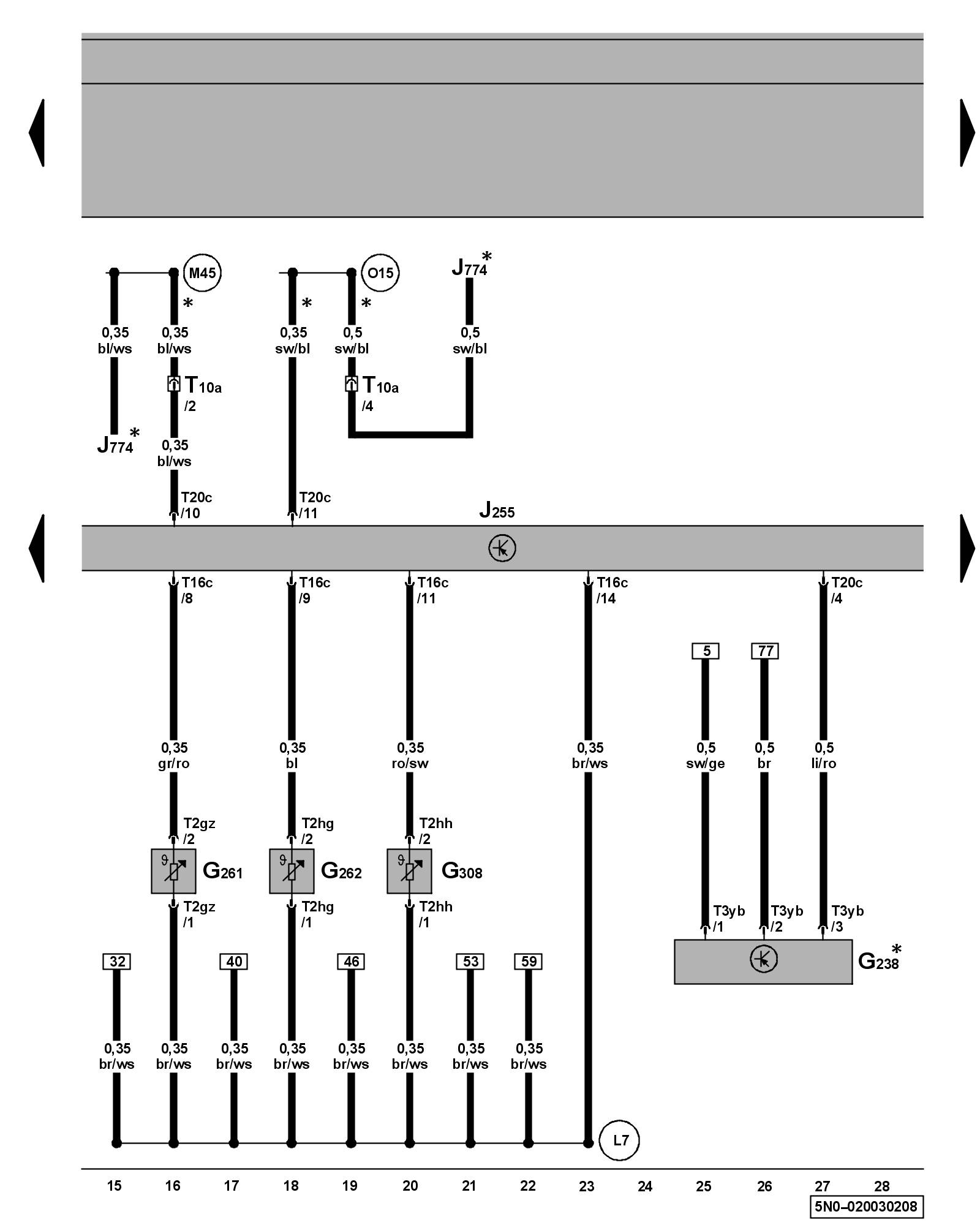

Diagram 20/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left and Right Footwell Vent Temperature Sensor, Air Quality Sensor, Climatronic Control Module, Evaporator Temperature Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G238 - Air Quality Sensor Pass Compartment Climatronic (Automatic Climate Control) [1][2]Climate Control Exhaust Gas Sensor

G261 - Left Footwell Vent Temperature Sensor Pass Compartment Climatronic (Automatic Climate Control) Left Footwell Vent Temperature Sensor -G261-

G262 - Right Footwell Vent Temperature Sensor Pass Compartment Climatronic (Automatic Climate Control) Right Footwell Vent Temperature Sensor -G262-

G308 - Evaporator Temperature Sensor Pass Compartment Climatronic (Automatic Climate Control) Diagrams

J255 - Climatronic Control Module Control Modules in Pass Compartment Climatronic (Automatic Climate Control) Control Module -J255-

J774 - Front Heated Seats Control Module Control Modules in Pass Compartment

T2gz - Double Connector, black

T2hg - Double Connector, black

T2hh - Double Connector, black

T3yb - 3-Pin Connector, black

T10a - 10-Pin Connector, black Component Locations

T16c - 16-Pin Connector, black

T20c - 20-Pin Connector, black

(L7) - Connection 3 (in A/C system wiring harness)

(M45) - Connection 5 (in driver's seat wiring harness)

(O15) - Connection 4 (in seat heater wiring harness)
