Diagram 51/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

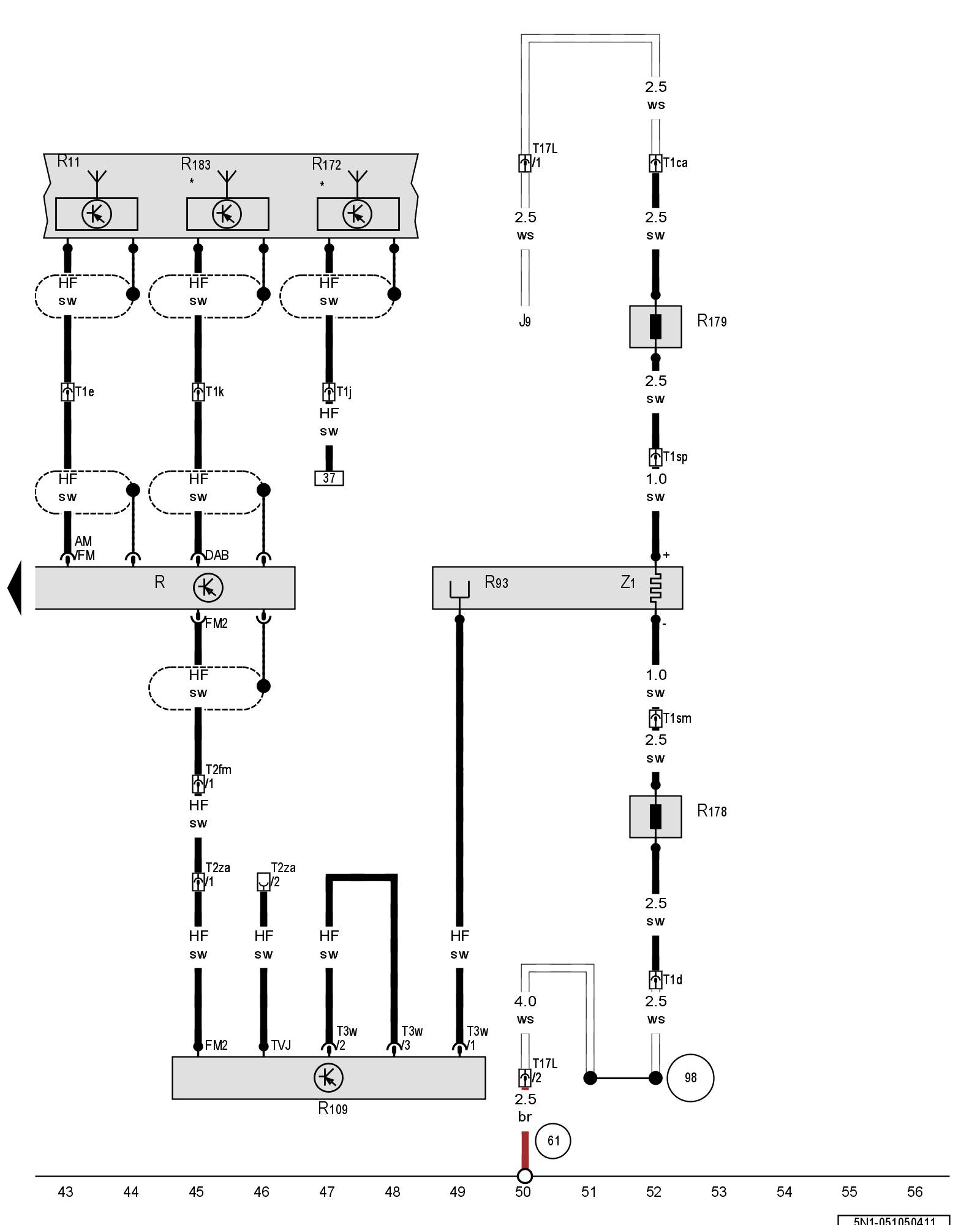

Radio, Antenna, Right antenna module, Rear window defogger





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J9 - Rear window defogger relay

R - Radio Control Modules in Pass Compartment

R11 - Antenna Radio Systems Overview

R93 - Radio antenna 2 Radio Systems Overview

R109 - Right antenna module

R172 - Satellite tuner antenna Radio Systems Overview

R178 - FM frequency filter in negative wire Radio Systems Overview

R179 - FM frequency filter in positive wire Radio Systems Overview

R183 - Digital radio antenna Radio Systems Overview

T1ca - Single connector

T1d - Single connector

T1e - Single connector Component Locations

T1j - Single connector Component Locations

T1k - Single connector

T1sm - Single connector

T1sp - Single connector

T2fm - Double connector Component Locations

T2za - Double connector

T3w - 3-pin connector

T17L - 17-pin connector Component Locations

Z1 - Rear window defogger

(61) - Ground connection on left C-pillar Overview Of Ground Connections in Luggage Comp.

(98) - Ground connection (in rear lid wiring harness)

* - Depending on equipment

Previous Diagram 51/4 (Tracks 29-42)
