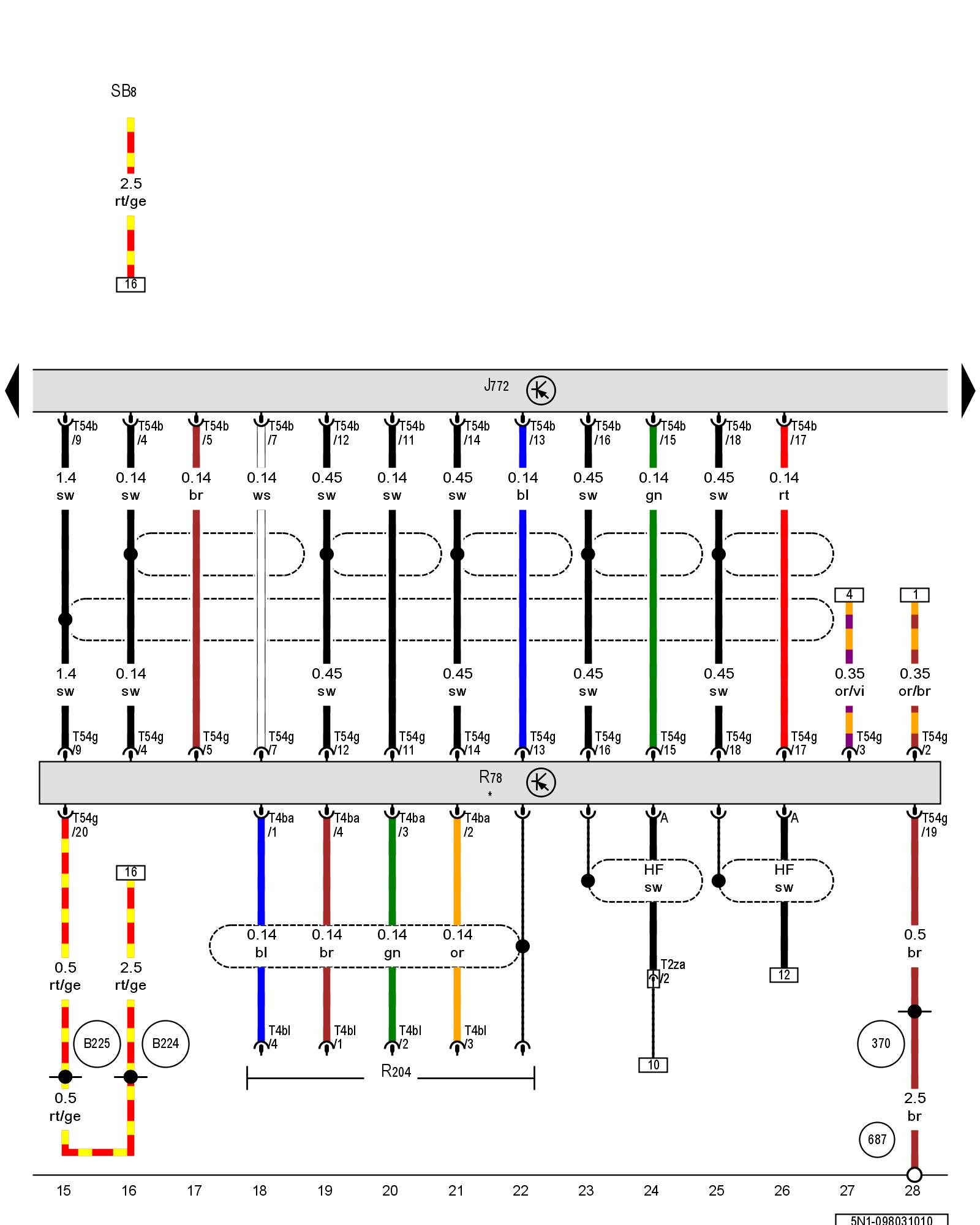

Diagram 98/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Rearview camera system control module, TV tuner, TV card reader, Fuse 8 (on fuse panel B)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J772 - Rearview camera system control module Control Modules in Luggage Comp.

R78 - TV tuner Control Modules in Pass Compartment

R204 - TV card reader

SB8 - Fuse 8 (on fuse panel B) Overview Of Fuses

T2 - Double connector

T2za - Double connector

T4ba - 4-pin connector

T4bl - 4-pin connector

T54b - 54-pin connector

T54g - 54-pin connector

(370) - Ground connection 5 (in main wiring harness)

(687) - Ground connection 1 on center tunnel

(B224) - Radio connection 1 (in interior wiring harness)

(B225) - Radio connection 2 (in interior wiring harness)

* - Only for vehicles with TV tuner
