Removal and Replacement

Brake Lines, Connecting

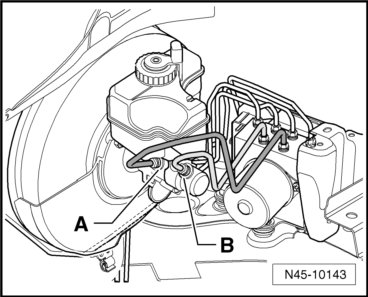

On Brake Master Cylinder





A Primary piston circuit of master brake cylinder to hydraulic unit
Identification: 6.5 mm diameter and tube fitting with thread M 12 x 1
B Secondary piston circuit of master brake cylinder to hydraulic unit
Identification: 6.5 mm diameter and tube fitting with thread M 12 x 1

On Hydraulic Unit





1 Hydraulic unit to left front brake caliper
Identification: 5.25 mm diameter and tube fitting with shorter thread M12 x 1
2 Hydraulic control unit to right rear brake caliper
Identification: 5.25 mm diameter and tube fitting with thread M 10 x 1
3 Hydraulic control unit to left rear brake caliper
Identification: 5.25 mm diameter and tube fitting with shorter thread M12 x 1
4 Hydraulic unit to right front brake caliper
Identification: 5.25 mm diameter and tube fitting with thread M 10 x 1
5 Hydraulic unit to primary piston circuit of master brake cylinder
Identification: 6.5 mm diameter and tube fitting with longer thread M12 x 1
6 Hydraulic unit to master cylinder secondary piston circuit
Identification: 6.5 mm diameter and tube fitting with longer thread M12 x 1
