Central Locking Component Overview

Central Locking Component Overview

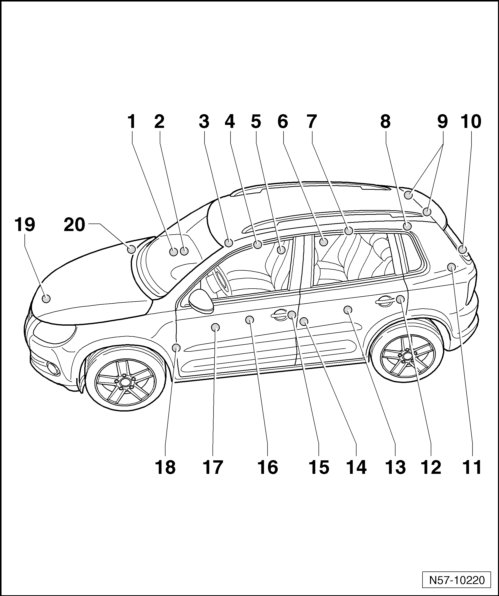

1 Comfort System Central Control Module -J393-

• Installed location: under the instrument panel on the front passenger side

• Removing,

2 Coupling station

• Installation location: right A-pillar.

• To disconnect harness connector, release bellows at pillar, refer to => [ Door, Removing and Installing ] Front Door

3 Front right door control module

• Integrated in window regulator motor.

• Removing, refer to => [ Window Regulator Motor ] Window Regulator Motor

4 Front Passenger Door Central Locking Lock Unit -F221-

• Door lock is secured to subframe.

• Electrical central locking system is integrated in door lock.

• Removing, refer to => [ Door Lock ] Door Lock

5 Coupling station

• Installed location: right B-pillar

• To disconnect harness connector, release bellows at pillar

6 Right rear door control module

• integrated in window regulator motor.

• Removing, refer to => [ Window Regulator Motor ] Window Regulator Motor

7 Right Rear Central Locking Lock Unit -F223-

• Door lock is secured to subframe.

• Electrical central locking system is integrated in door lock.

• Removing, refer to => [ Door Lock ] Door Lock

8 Fuel Tank Lid Lock Motor -V155-

• Installation location: on the tank flap unit

9 Rear lid coupling station

• Installation location: behind the left luggage compartment trim.

10 Rear Lid Handle Unlock Switch -E234-

11 Rear Lid Lock Unit -F256-

• Installation location: bolted on the rear lid

• Removing and installing, refer to => [ Rear Lid Lock ] Rear Lid Lock

12 Left Rear Central Locking Lock Unit -F222-

• Door lock is secured to subframe.

• Electrical central locking system is integrated in door lock.

• Removing, refer to => [ Door Lock ] Door Lock

13 Left rear door control module

• integrated in window regulator motor.

• Removing, refer to => [ Window Regulator Motor ] Window Regulator Motor

14 Coupling station

• Installation location: left B-pillar

• To disconnect harness connector, release bellows at pillar

15 Driver Door Central Locking Lock Unit -F220-

• Door lock is secured to subframe.

• Electrical central locking system is integrated in door lock.

• Removing, refer to => [ Door Lock ] Door Lock

16 Left front door control module

• integrated in window regulator motor.

• Removing, refer to => [ Window Regulator Motor ] Window Regulator Motor

17 Central Window Regulator Switch (in driver's door) -E189-

• Installed location: inside the door trim panel

• Remove and installing central window regulator switch

18 Coupling station

• Installation location: left A-pillar

• To disconnect harness connector, release bellows at pillar, refer to => [ Door, Removing and Installing ] Front Door

19 Front Hood Switch -F266-

• Removing and installing contact switch

• Installed location: on the latch

• Removing and installing lid lock, refer to => [ Hood Lock ] Hood Lock

20 Alarm Horn -H12-

• Installation location: in the plenum chamber
