Lower Instrument Panel Trim

Lower Instrument Panel Trim

Removing

- Switch off ignition.

- Remove side instrument panel covers. Refer to => [ Instrument Panel Side Covers ] Instrument Panel Side Covers

- Remove the glove compartment. Refer to => [ Glove Compartment ] Glove Compartment

- Remove the steering column trim gap cover from the instrument panel. Refer to => [ Steering Column Trim ] Steering Column Trim. It is not necessary to remove the complete steering column trim.

- Remove the headlamp switch (E1).

- Remove right trim panel on driver side. Refer to => [ Driver Side Left Trim ] Driver Side Left Trim

- Remove the heat and A/C controls trim. Refer to => [ Heat and A/C Controls Trim ] Heat and A/C Controls Trim

- Remove the center console cover. Refer to => [ Center Console Cover ] Center Console Cover

- Remove the trim on both sides of the footwell. Refer to => [ Footwell Trim ] Footwell Trim

Vehicles with a Center Console without Center Armrest

- Remove the center console, without center armrest. Refer to => [ Center Console with Armrest ] Center Console with Armrest

Vehicles with a Center Console with Center Armrest

- Remove the DVD player if present.

- Remove the CD changer if present.

- If equipped, remove the mount for the "iPOD" from "Apple".

- Remove the storage compartment with USB connection, if present.

- Remove the multi media system control module, if present.

Vehicles with Multi Media System

- Remove the multi media control head.

Vehicles with Converter with Socket, 12V, 230V (U13)

- Remove the converter with socket, 12 V-230 VV (U13).

- Remove the center console trim. Refer to => [ Center Console Trim ] Center Console Trim

- Remove the center console, with center armrest. Refer to => [ Center Console with Armrest ] Center Console with Armrest

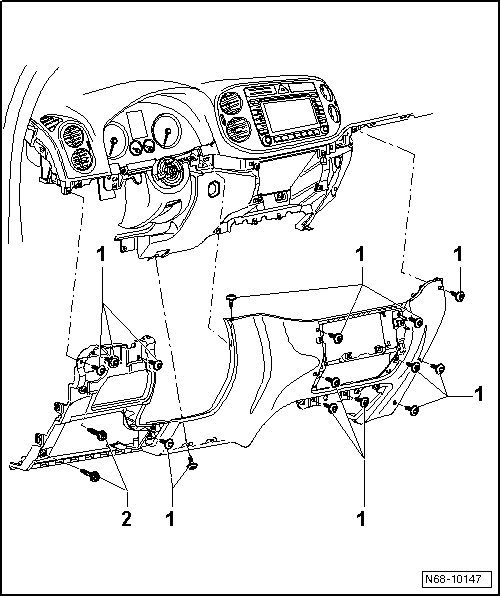

- Remove the two bolts - 2 -.

- Remove the 15 screws - 1 - and loosen the instrument panel trim.






Installation

- Guide the light switch connector and cable and the headlamp range control through the opening.

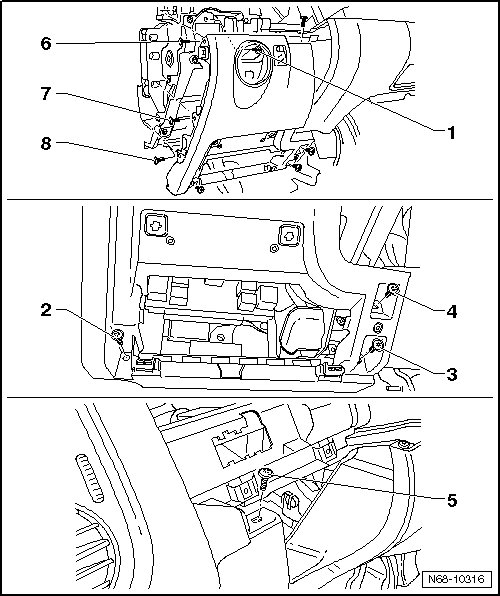

- Secure the trim in the - specified sequence - (1.5 Nm).
