Power Trunk / Liftgate Lock Actuator: Service and Repair

Striker Pin

Removing

- Remove the lock carrier cover.

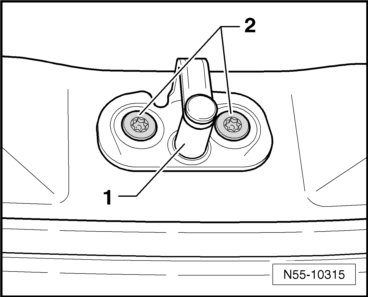

- Remove screws - 2 - and remove latch bracket - 1 -.

Installation

- Install striker pin - 1 - and install screws - 2 -.





- Screw - 2 - tightening specification: 18 Nm.

- Adjust striker pin.
