Rear Door Windows

Window Recess Seal

Removing

• Window recess seal must not be bent when removing.

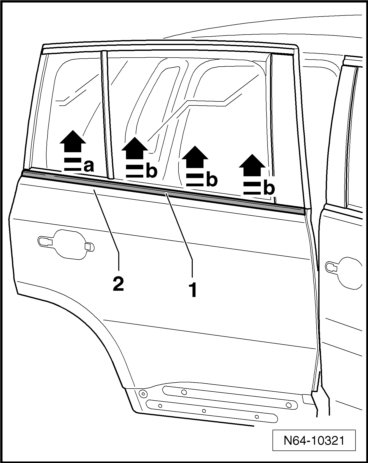

- Begin at rear area - arrow a - and carefully lift window recess seal - 1 -.





- Pull window recess seal - 1 - off evenly - arrows b - from door flange - 2 -.

Installing

- Press window recess seal by hand onto door flange by applying uniform pressure from above.
