Front Door Window

Window Recess Seal

Removing

• Window recess seal must not be bent when removing.

- Remove side mirror. Refer to => [ Exterior Rearview Mirror ] Exterior Rearview Mirror.

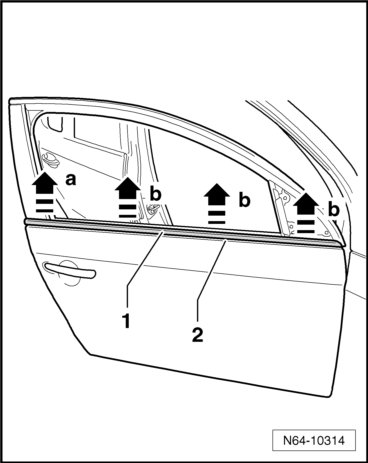

- Begin at rear window guide - arrow a - and carefully lift window recess seal - 1 -.

- Pull window recess seal - 1 - off evenly - arrows b - from door flange - 2 -.

Installing

• Window recess seal must not be knocked on to door flange.

- Press window recess seal evenly onto door flange by hand.
