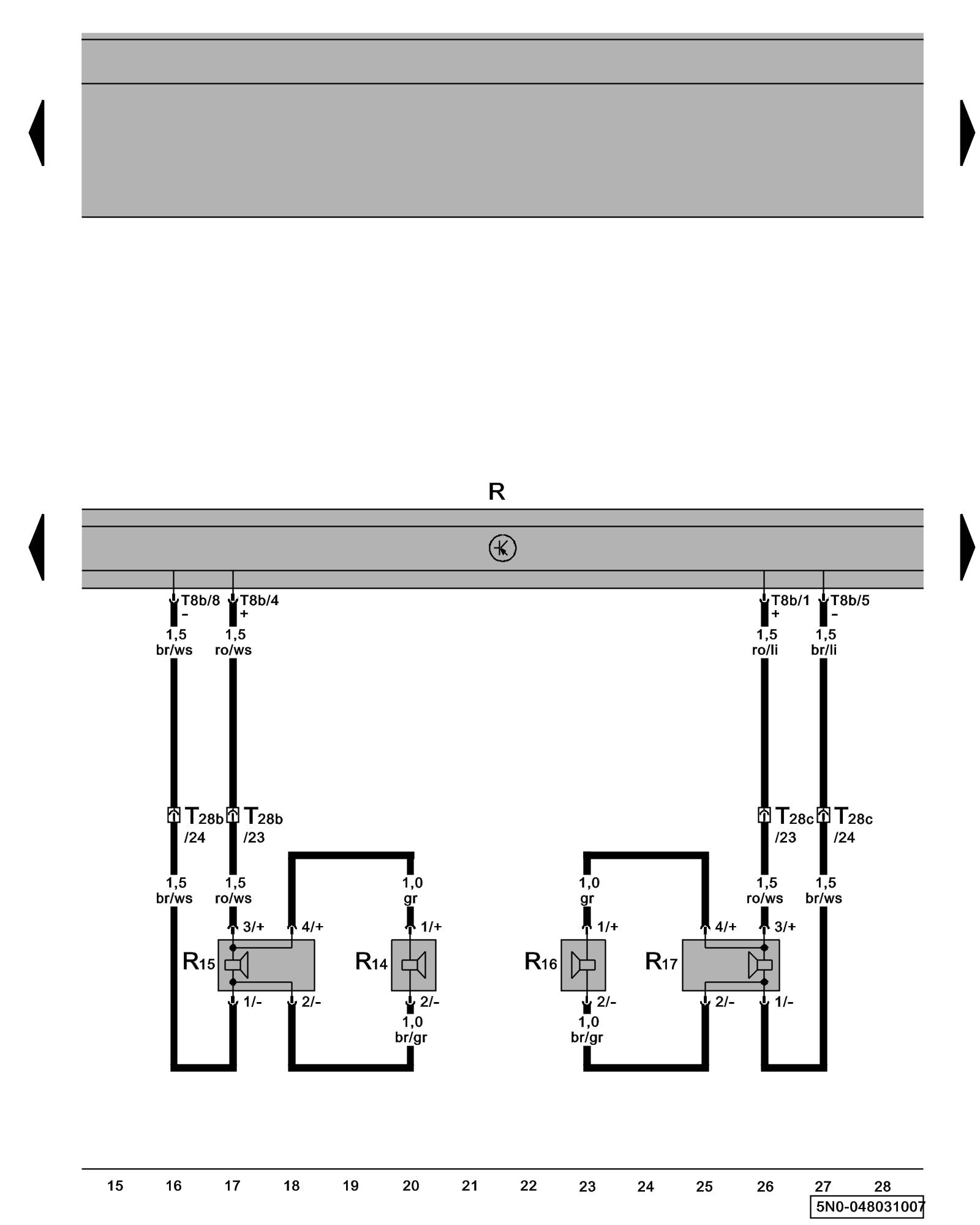

Diagram 48/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Rear Speaker, Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Control Modules in Pass Compartment

R14 - Left Rear Treble Speaker Radio Systems Overview

R15 - Left Rear Bass Speaker Radio Systems Overview

R16 - Right Rear Treble Speaker Radio Systems Overview

R17 - Right Rear Bass Speaker Radio Systems Overview

T8b - 8-Pin Connector, brown

T28b - 28-Pin Connector, behind left B-pillar trim Component Locations

T28c - 28-Pin Connector, behind right B-pillar trim Component Locations
