Parallel Parking Assistance Control Module (J791)

Front and Parallel Parking Assistance Components

Parallel Parking Assistance Control Module (J791)

Removing:

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the trim in the driver footwell.

- Press the latches - arrows - away and remove the parallel parking assistance control module with the wires still connected.

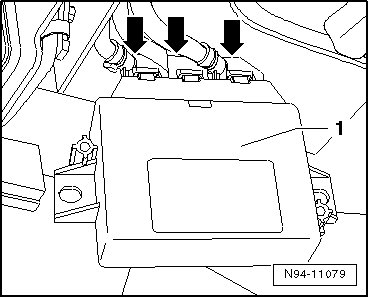

- Release and disconnect the three connectors - arrows - and remove the parallel parking assistance control module - 1 - from the vehicle.





Installing:

Install in reverse order of removal.
