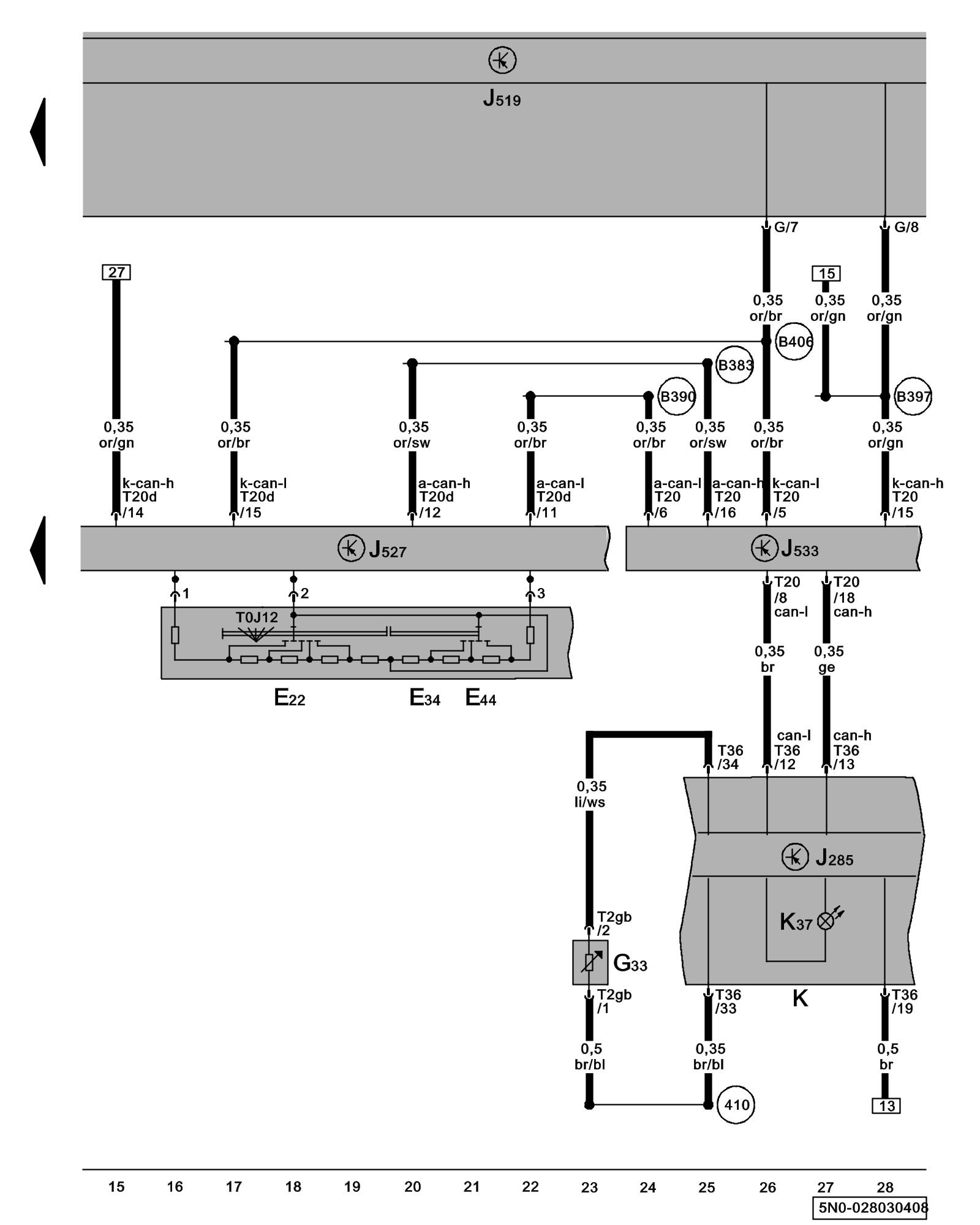

Diagram 28/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Rear Window Wiper Switch, Low Windshield Washer Fluid Level Indicator, Windshield Wiper/Washer Switch, Steering Column Electronic Systems Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E22 - Windshield Wiper Intermittent Switch

E34 - Rear Window Wiper Switch

E44 - Windshield and Headlamp Washer Pump Switch

G33 - Windshield Washer Fluid Level Sensor

J285 - Instrument Cluster Control Module Control Modules in Pass Compartment

J519 - Vehicle Electrical System Control Module Control Modules in Pass Compartment

J527 - Steering Column Electronic Systems Control Module Control Modules in Pass Compartment Steering Column Electronics Control Module -J527-

J533 - Data Bus On Board Diagnostic Interface Control Modules in Pass Compartment

K - Instrument Cluster

K37 - Low Windshield Washer Fluid Level Indicator Lamp

T2gb - Double Connector, black

T20 - 20-Pin Connector, red

T20d - 20-Pin Connector, black

T36 - 36-Pin Connector

(410) - Sensor Ground Connection 1 (in main wiring harness)

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)
