Transmission, Transporting

Transmission, Transporting

Special tools, testers and auxiliary items required

• Shackle (10-222 A/12)

• Additional Hooks (10-222 A/2)

To transport the manual transmission and to set up the transmission support (3282) , the shackle (10-222 A/12) can be used with the additional hooks (10-222 A/2) and the shop crane.

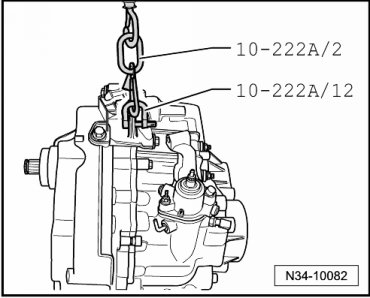

- Install the shackle (10-222 A/12) to the transmission housing.

- Lift the transmission using the additional hooks (10-222 A/2) and shop crane.
