Reverse Gear Output Shaft Overview

Reverse Gear Output Shaft Overview

Disassembly and assembly, refer to => [ Reverse Gear Output Shaft ] Reverse Gear Output Shaft.

• The output shaft is not available as a replacement part.

• When installing the tapered roller bearing, install new shims which have the same thickness as the previous shims.

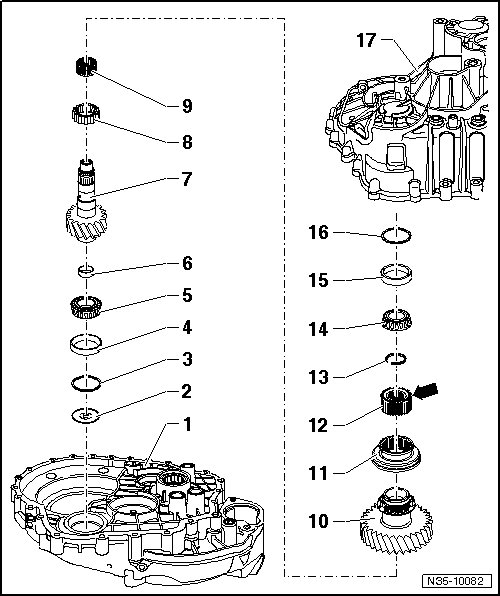

1 Clutch Housing

2 Oil Deflector Ring

3 Adjusting Shim

• Pay attention to the thickness.

• Will get damaged when being removed, always replace.

4 Outer Race/Tapered Roller Bearing

• Removing, refer to => [ Removing the Outer Race/Tapered Roller
Bearing from the Clutch Housing ] Reverse Gear Output Shaft.

• Installing, refer to => [ Installing the Outer Race/Tapered Roller
Bearing in the Clutch Housing ] Reverse Gear Output Shaft.

5 Inner Race/Tapered Roller Bearing

• Removing, refer to => [ Removing the Inner Race/Tapered Roller
Bearing in the Clutch Housing ] Reverse Gear Output Shaft.

• Installing, refer to => [ Installing the Inner Race/Tapered Roller
Bearing in the Clutch Housing ] Reverse Gear Output Shaft.

6 Dished Washer

• Removing, refer to => [ Remove the Dished Washer from the Output Shaft ] Reverse Gear Output Shaft.

• Installing, refer to => [ Install the Dished Washer all the way into the Output Shaft ] Reverse Gear Output Shaft.

7 Output Shaft

• For reverse gear

• Bearing for drive gear for reverse gear as a plain bearing, or with a roller bearing - 8 - and needle bearing - 9 -.

• Differences, refer to => [ Different Bearings for the Reverse Gear ].

8 Roller Bearing

• For reverse gear.

• not available on all transmissions, then plain bearing for reverse gear - 10 -.

9 Needle Bearing

• For reverse gear.

• Not available on all transmissions, then plain bearing for reverse gear - 10 -.

10 Reverse Gear

• Different internal diameters for plain bearing, the roller bearing - 8 - and the needle bearing - 9 -.

• Stop ring and spring, removing and installing. Refer to => [ Reverse Gear Wheel Stop Ring and Spring ] Reverse Gear Wheel Stop Ring and Spring.

11 Reverse Gear Locking Collar

• With synchronizer ring.

12 Reverse Gear Synchronizer Hub

• After removing the locking ring - 13 - press off with the reverse gear. Refer to => [ Removing the Synchronizer Hub/Reverse
Gear and Reverse Gear ] Reverse Gear Output Shaft.

• Installed position: The stop - arrow - for the reverse gear slide locking collar faces the locking ring.

• Installing, refer to => [ Installing the Reverse Gear Synchronizer
Hub ] Reverse Gear Output Shaft.

13 Locking Ring

14 Inner Race/Tapered Roller Bearing

• Removing, refer to => [ Removing the Inner Race/Tapered Roller
Bearing inside the Transmission Housing ] Reverse Gear Output Shaft.

• Installing, refer to => [ Installing the Inner Race/Tapered Roller
Bearing Inside the Transmission Housing ] Reverse Gear Output Shaft.

15 Outer Race/Tapered Roller Bearing

• Removing, refer to => [ Removing the Outer Race/Tapered Roller
Bearing from the Transmission Housing ] Reverse Gear Output Shaft.

• Installing, refer to => [ Installing the Outer Race/Tapered Roller
Bearing into the Transmission Housing ] Reverse Gear Output Shaft

16 Adjusting Shim

• Pay attention to the thickness.

• Will get damaged when being removed, always replace.

17 Transmission Housing

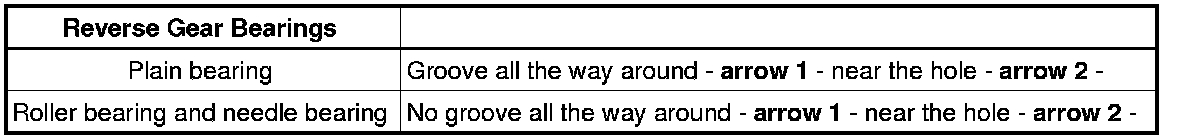

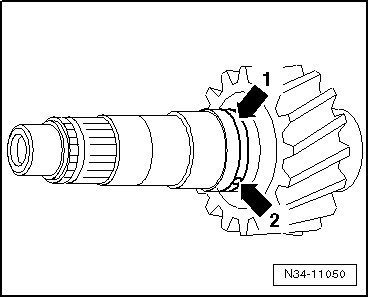

Different Bearings for the Reverse Gear
