Front Door Window Glass: Adjustments

Front Door Window, Adjusting





- Remove front door trim.

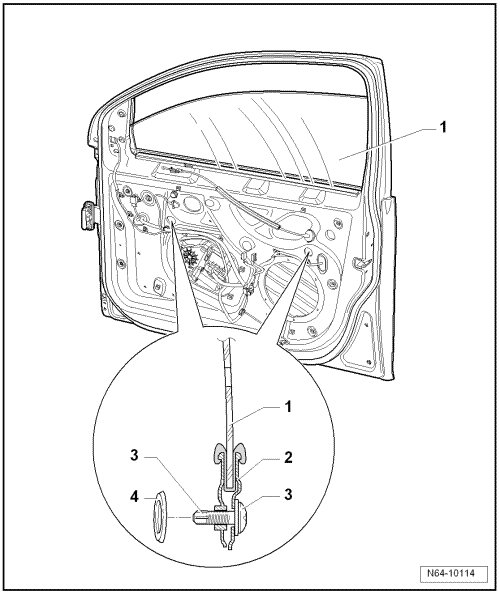

- Pry out cover caps - 4 -.

- Lower door window - 1 - until locking screws - 3 - for mount - 2 - are accessible.

CAUTION!
Loosen screw - 3 - from inside by turning toward right.

- Loosen bolts - 3 - (do not remove) from inside by turning toward right and press apart clamping brackets.

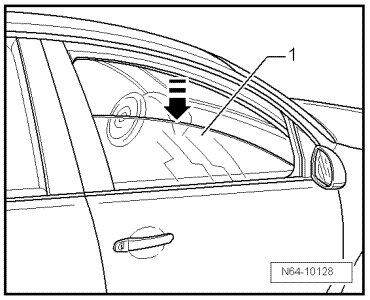

- Press door window - 1 - using light pressure into clamping brackets - direction of arrow - and align door window to rear window guide without exerting pressure.





- While doing this, make sure that door window - 1 - stands parallel to window guide.

- Tighten clamping brackets with screws - 3 - from inside by turning toward left.

Bolt tightening specification: 8 Nm.

• Then perform function test.

Further installation is in reverse order of removal.
