Seals and Gaskets: Application and ID

Right Flange Shaft Seal, Differentiating

The seal - 1 - for the right flange shaft is inside the sleeve - 2 -.

There are different versions:

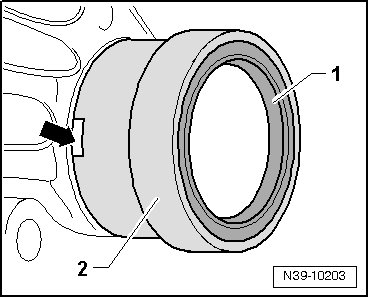

The seal - 1 - and the sleeve - 2 - are two separate parts. Characteristics: the notches are arranged around the sleeve - arrow -.

Seal, replacing. Refer to => [ Right Flange Shaft Seal and Sleeve, Two Piece ] Right Flange Shaft Seal and Sleeve, Two Piece.

The seal - 1 - and the sleeve - 2 - are a single part. Characteristics: no notches - arrow - in the sleeve.

Seal, replacing. Refer to => [ Right Flange Shaft Seal and Sleeve, One Piece ] Right Flange Shaft Seal and Sleeve, One Piece.
