Constant Velocity Joint: Tools and Equipment

Special Tools

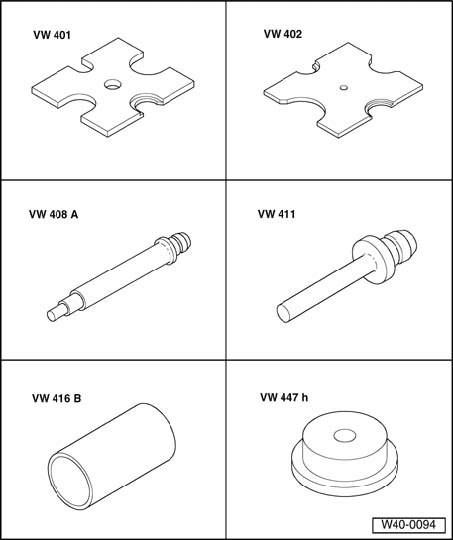

^ Thrust plate VW 401
^ Thrust plate VW 402
^ Punch VW 408 A
^ Punch VW 411
^ Sleeve VW 416 B
^ Thrust pad VW 447 H

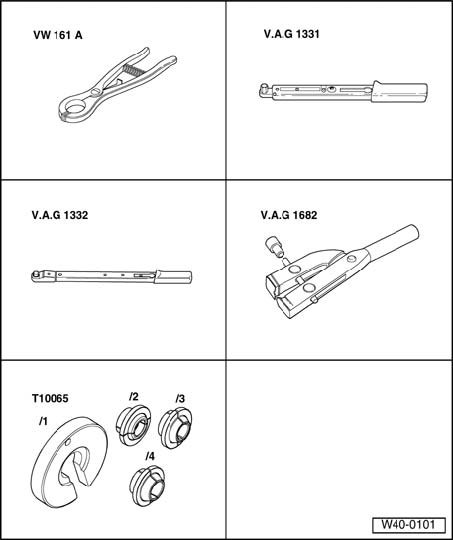

^ Circlip pliers VW 161 A
^ Torque Wrench V.A.G 1331
^ Torque Wrench V.A.G 1332
^ CV joint boot clamp tool V.A.G 1682
^ Assembly tool T10065

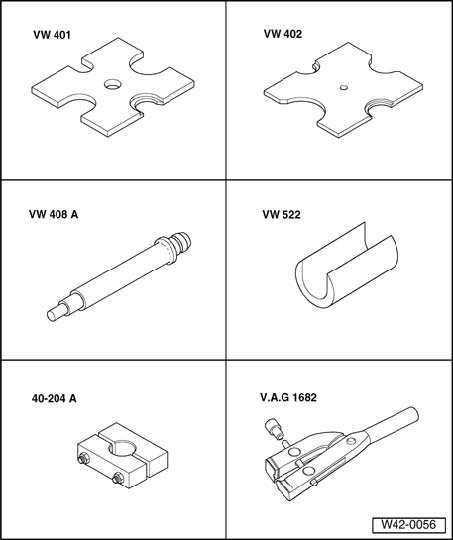

^ Thrust plate VW 401
^ Thrust plate VW 402
^ Punch VW 408 A
^ Support sleeve VW 522
^ Clamp 40 - 204 A
^ CV joint boot clamp tool V.A.G 1682





^ Engine/transmission jack V.A.G 1383 A
^ Tensioning strap T10038
^ Mount T10149

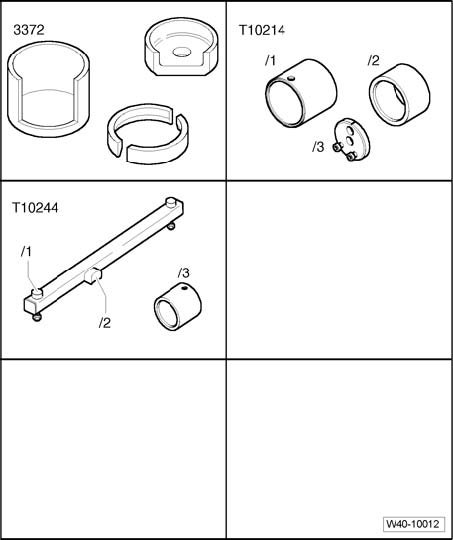

^ Installation device 3372
^ Assembly tool T10214
^ Assembly tool T10244

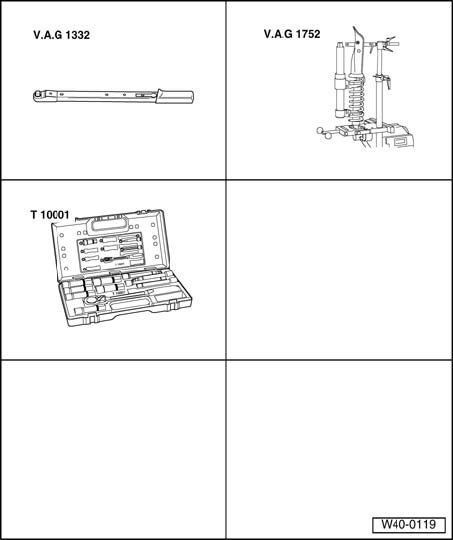

^ Torque Wrench V.A.G 1332
^ Spring compressor V.A.G 1752/1
^ Spring holder V.A.G 1752/4
^ Shock absorber set T10001
^ Ratchet (commercially available)

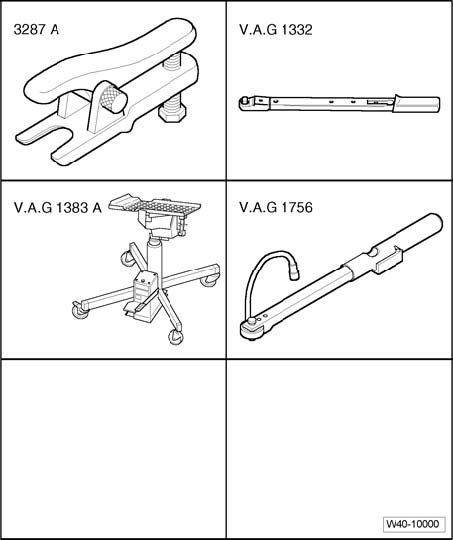

^ Ball joint puller 3287A
^ Torque Wrench V.A.G 1332
^ Engine/transmission jack V.A.G 1383 A
^ Angle wrench V.A.G 1756

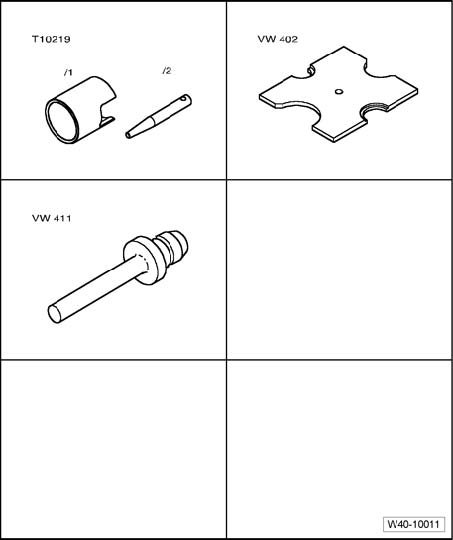

^ Tube T10219/1
^ Drift T10219/2
^ Thrust plate VW 402
^ Punch VW 411

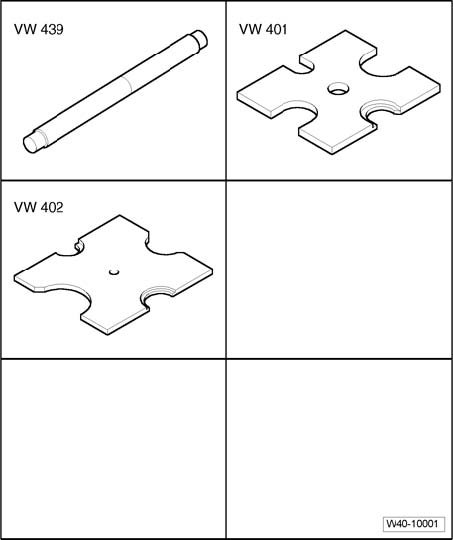

^ Guide piece VW 439
^ Thrust plate VW 401
^ Thrust plate VW 402

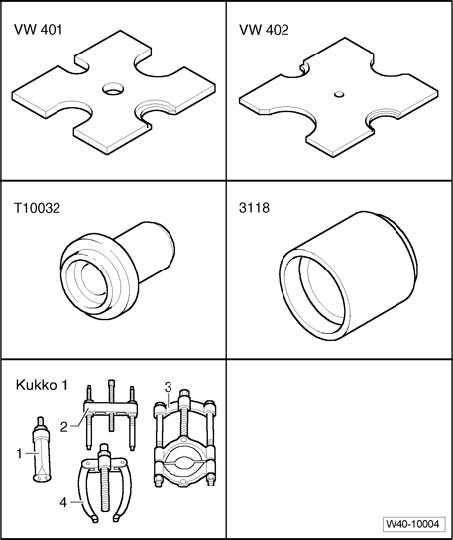

^ Thrust plate VW 401
^ Thrust plate VW 402
^ Press piece T10032
^ Press piece 3118
^ Kukko separating tool 15-2





^ Spreader 3424





^ Sleeve VW 418 A





^ Locating pins T10096





^ Socket XZN 24 T10361





^ Assembly tool T10214





^ Assembly tool T10244





^ Torque Wrench V.A.G 1331





^ Wedge T10161
