Selector Shaft Seal

Selector Shaft Seal

Special tools, testers and auxiliary items required

• Thrust piece (T10174)

- Remove the multi-function transmission range switch (F125).

- Carefully pry out the shift rod seal using a screwdriver. Do not damage the shift rod while doing so.

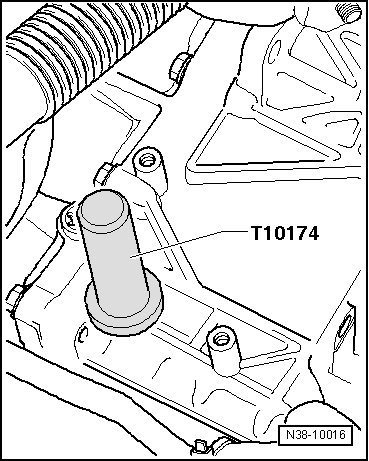

- Install the new seal using (T10174). Do not tilt the seal.





- Adjust the multi-function transmission range switch.
