Wheels: Testing and Inspection

Light Alloy Wheels with Metal Valve

From MY 2005, hollow chamber wheels have been installed in some equipment versions. Metal valves are installed with these hollow chamber wheels in place of the conventional rubber valves. Metal valve must be replaced completely for each tire change.

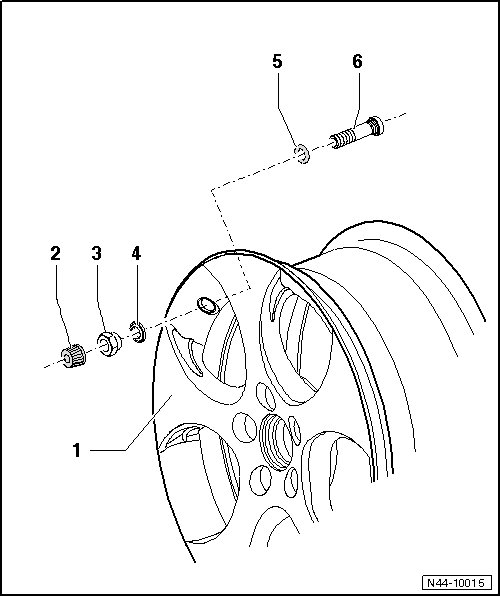

1 Disk Wheel

2 Valve Cap

3 Nut

• 4 Nm

4 Washer

5 Seal

6 Metal Valve
