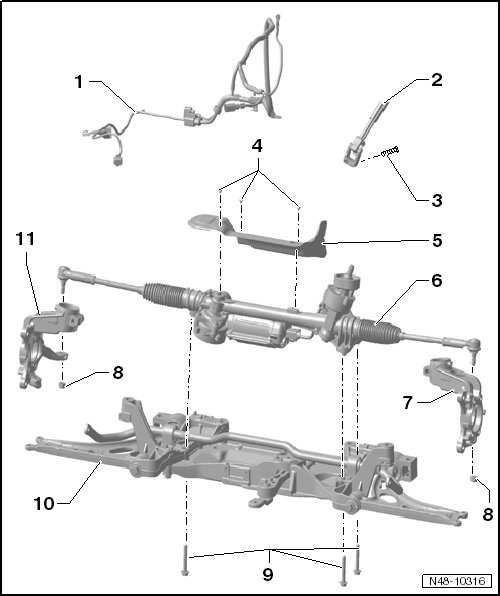

Electro-Mechanical Steering Gear Generation 3, through MY 2009 Assembly Overview

Electro-Mechanical Steering Gear Generation 3, through MY 2009 Assembly Overview





1 Electrical Wiring

2 Universal Joint

3 Bolt

• Always replace after removal

• 30 Nm

• M8 x 35

4 TORX(R) Bolt

• 6 Nm

• Self-tapping

5 Shield

6 Power-Assisted Steering Gear

• With power steering control module (J500)

• With electromechanical power steering motor (V187 )

• with steering angle sensor (G85)

• With steering torque sensor (G269)

• Can be tested in guided fault finding using the Vehicle diagnosis, testing and information system (VAS 5051B)

• Removing and installing, refer to => [ Steering Gear, Generation 3, from MY 2009 ] Steering Gear, Generation 3, from MY 2009

7 Left Wheel Bearing Housing

8 Nut

• Always replace after removal

• 20 Nm plus an additional 90° turn

• M12 x 1.5

• Self-locking

9 Bolt

• Always replace after removal

• 50 Nm plus an additional 90° turn

10 Subframe

11 Right Wheel Bearing Housing
