Left Instrument Panel Fuse Holder

Left Instrument Panel Fuse Holder

Special tools, testers and auxiliary items required

• Trim removal wedge (VAS 3409)

• When removing and installing components in a visible area (switches, covers, trim, etc.), mask off the areas at which a prying tool ( trim removal wedge (VAS 3409), screwdriver) will be positioned, using commercially available adhesive tape.

CAUTION!
When disconnecting and connecting battery, the procedure must be followed as described in the repair information. Refer to=> [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

Removing

- Disconnect battery. Refer to=> [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove storage compartment on driver's side

- Remove side cover - 1 - of instrument panel, do this by inserting trim removal wedge (VAS 3409) or a screwdriver into recess - 2 - and pry off cover - 1 - in - direction of arrow -.





- Remove fuse assignment card - 1 - from fuse panel - 2 -.

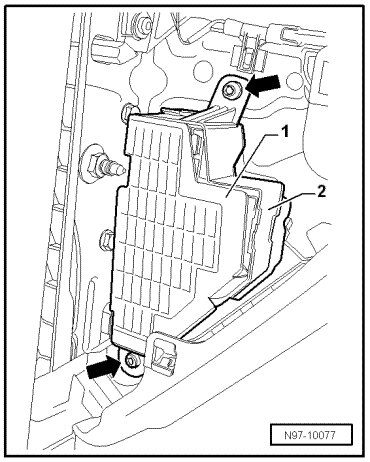

- Remove screws - arrows - and guide fuse panel - 1 - out toward inside, considering length of available cable.

Installing

Install in reverse order of removal.
