Exterior Rearview Mirror Turn Signal and Entry Lamp Bulbs

Exterior Rearview Mirror Turn Signal and Entry Lamp Bulbs

• Additional information:

318Golf 2004

319Golf 2004 - Electrical System



Exterior mirror turn signal lamps (side turn signal lights) are installed in exterior mirror housing.

In addition, there is one entry lamp each in exterior mirror housings which illuminate the dark entry area around opened driver's and front passenger's door.

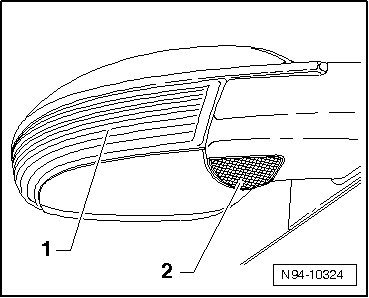

1Driver's Exterior Mirror Turn Signal Lamp and Front Passenger's Exterior Mirror Turn Signal Lamp
2 Driver's Entry Lamp (in outside mirror) and Front Passenger's Entry Lamp (in outside mirror)

DTC recognition and display:

Vehicle electrical system control is equipped with On Board Diagnostics (OBD) capabilities which assists in troubleshooting.

For troubleshooting, use Vehicle Diagnostic, Testing and Information System (VAS 5051A) in operating mode " Guided Fault Finding".
