Rear Lid Tail Lamps Assembly Overview

Rear Lid Tail Lamps Assembly Overview

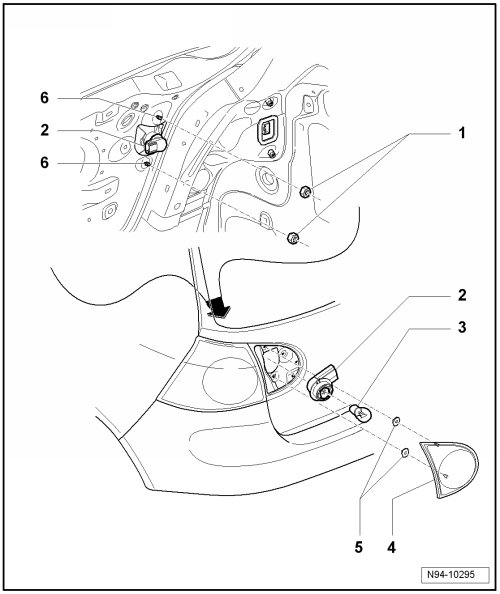

- Tightening specifications, refer to => [ Specifications ] Specifications

1 - Nuts

2 - Bulb holder

• Removing and installing, refer to=> [ Rear Lid Tail Lamp Bulb Holder ] Tail lamps

3 - Bulb 12V, P 21 W

• Left Rear Fog Lamp (L46) or Right Back-Up Lamp (M17) for rest of world (RDW) version

• Left Back-Up Lamp (M16) or Right Back-Up Lamp (M17) for USA and Canada version

4 - Taillamp assembly housing in rear lid

• Removing and installing, refer to=> [ Rear Lid Tail Lamps ] Tail lamps

5 - Washer

• A6.5 x 14 x 1.6

6 - Screw head to taillamp housing in rear lid
