Low Beam Bulbs

Halogen Headlamp Bulb

Low Beam Bulbs

• Illustrations depict replacement of left low beam headlamp bulb.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Rotate cover cap - 1 - in - direction of arrow - and remove it.

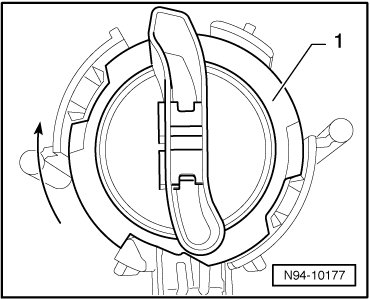

- Remove lamp socket with Low Beam Headlamp - 1 - in - direction of arrow - and remove it from headlamp.

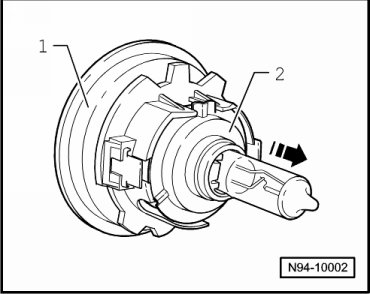

- Remove Low Beam Headlamp - 2 - in - direction of arrow - from lamp socket - 1 -.





Installing

CAUTION!
When installing the cover cap, make sure the cap is properly seated. It is destroyed by ingress of water into headlamp.

• Do not touch the glass of the light bulb, when installing. Your fingers will leave traces of grease on the glass which, when the light is switched on, will evaporate and cloud the glass.

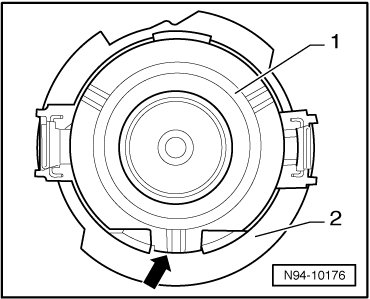

- Insert Low Beam Headlamp - 1 - into lamp socket so that pin on Low Beam Headlamp fits in recess - arrow - of lamp socket - 2 -.

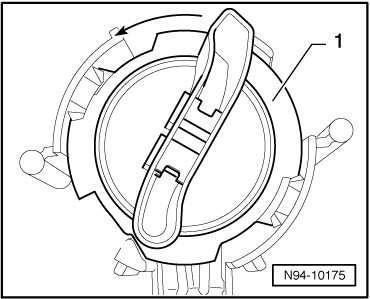

- Insert lamp socket with Low Beam Headlamp - 1 - into headlamp and rotate lamp socket with Low Beam Headlamp in - direction of arrow -.





- Insert cover cap - 1 - into recess on headlamp and tighten cover cap in - direction of arrow -.





- Check headlamp for function.

- Check headlamp adjustment and adjust headlamp if necessary.
