Front Turn Signal Bulbs

• Illustrations depict replacement of Front Turn Signal Light at left headlamp.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

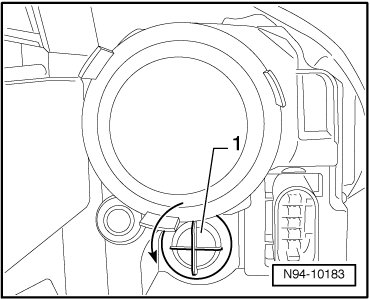

- Remove lamp socket with front turn signal light - 1 - in direction of arrow and remove it from headlamp.





- Push the front turn signal light into socket, twist front turn signal light counter clockwise and pull front turn signal light out of socket.

Installing

CAUTION!
When installing the cover cap, make sure the cap is properly seated. It is destroyed by ingress of water into headlamp.

• Do not touch the glass of the light bulb, when installing. Your fingers will leave traces of grease on the glass which, when the light is switched on, will evaporate and cloud the glass.

Install in reverse order of removal, noting the following:

- Check headlamp for function.
