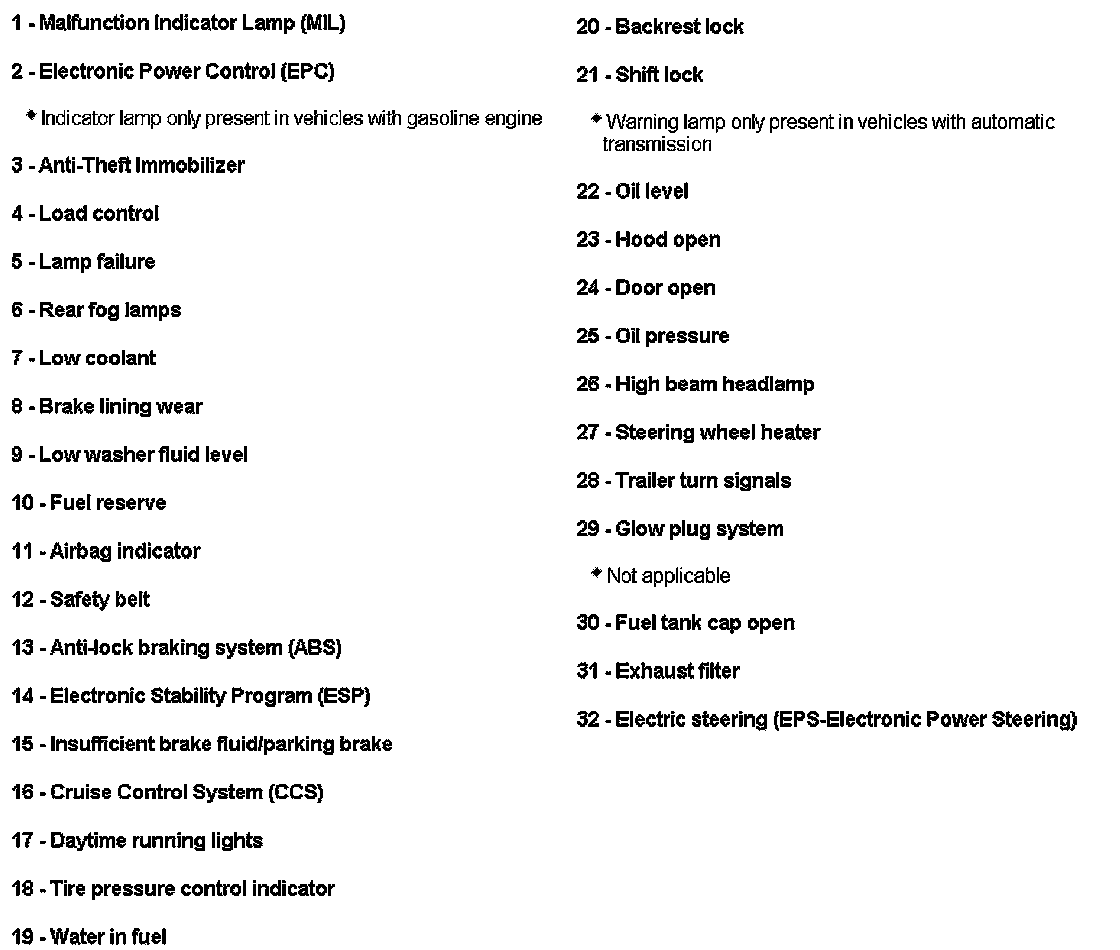

Instrument Cluster/ Carrier Overview

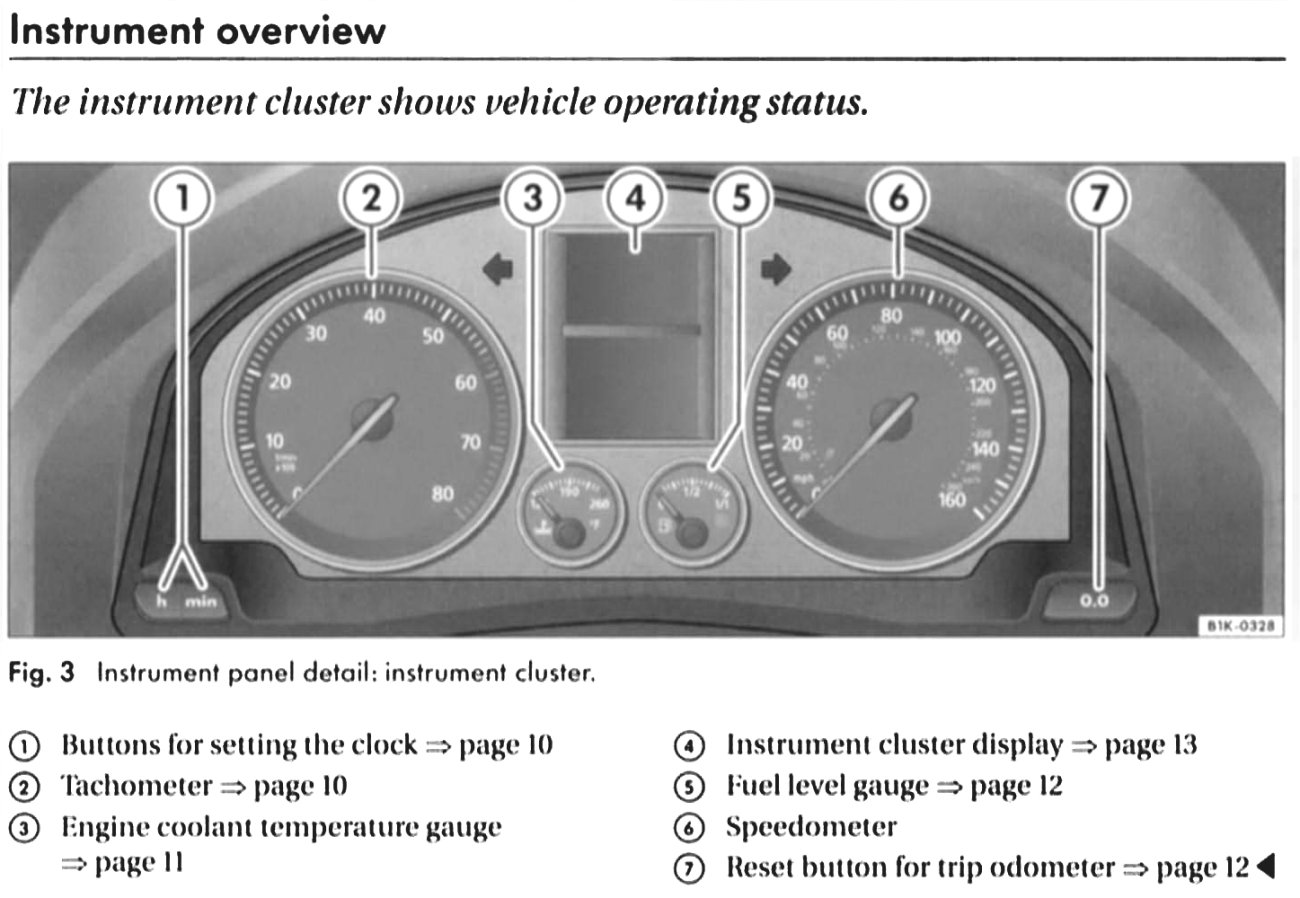

Instrument Cluster/ Carrier Overview

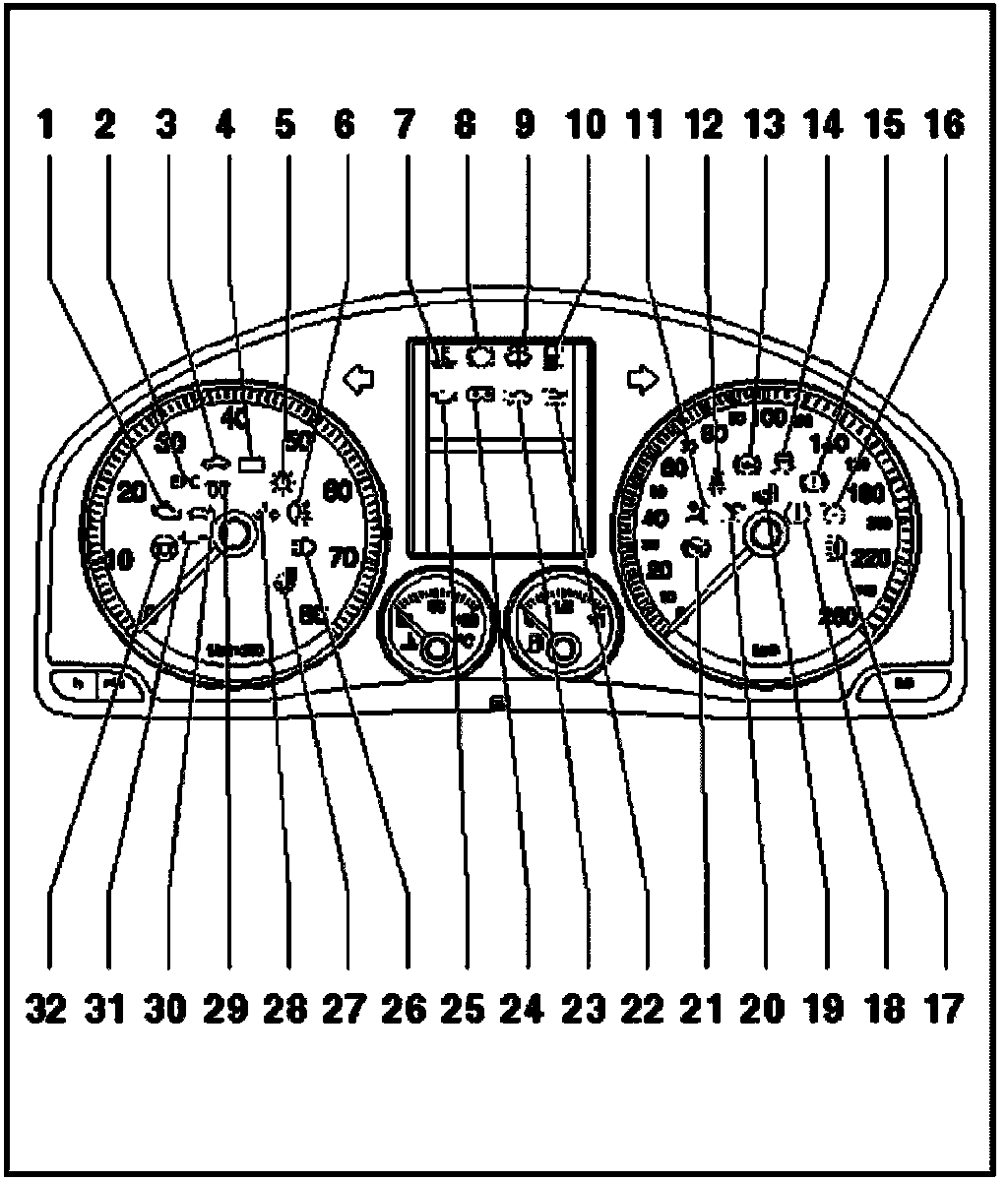

Instrument Cluster/ Carrier Overview
