Intake Manifold and Attachments

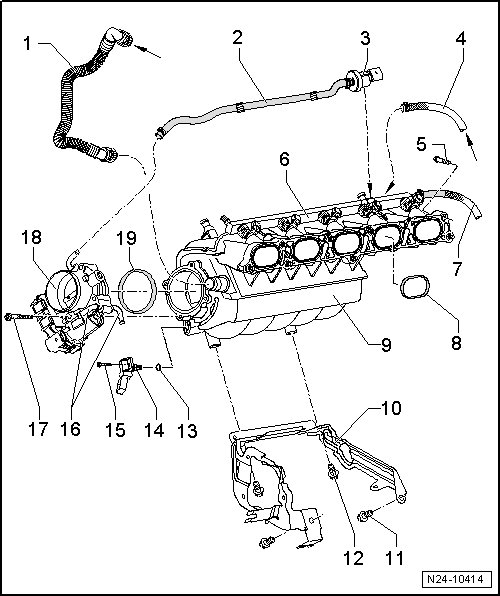

Intake Manifold and Fuel Rail Assembly Overviews

Intake Manifold and Attachments





1 Crankcase Ventilation Breather Hose

From the cylinder head cover.

2 Ventilation Hose

3 Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 (N80)

4 Vacuum Hose

From the Leak Detection Pump (LDP) (V144).

Vehicle through MY 2009 only.

From MY 2010, the vacuum connection is on the vacuum pump, vacuum line to the brake booster.

5 Bolt

9 Nm

6 Fuel Rail

Assembly overview, refer to => [ Fuel Rail and Injectors ] Intake Manifold and Fuel Rail Assembly Overviews.

7 Fuel Supply Line

8 Gasket

Replace

Note the installed position:

Casting mark points upward.

9 Intake Manifold

Removing and installing, refer to => [ Intake Manifold ] Intake Manifold.

10 Intake Manifold Support

Not installed on all vehicles.

11 Bolt

25 Nm

12 Bolt

16 Nm

13 O-ring

replace if damaged

14 Manifold Absolute Pressure (MAP) Sensor (G71 )

From MY 2009 with Intake Air Temperature (IAT) sensor (G42)

15 Bolt

3.5 Nm

16 Coolant Connections

Phased-in introduction of throttle valve control module without coolant heating.

17 Bolt

6.5 Nm

18 Throttle Valve Control Module (J338)

With throttle drive (for Electronic Power Control (EPC)) (G186), throttle drive angle sensor 1 (for EPC) (G187) and throttle drive angle sensor 2 (for EPC) (G188)

When replacing, erase the adaptation values and adapt the Engine Control Module (ECM) to the throttle valve control module. Refer to vehicle diagnosis, testing and information system"Guided Functions".

19 Seal

Replace if damaged
