Sealing Flange and Flywheel/Drive Plate Assembly Overview

Sealing Flange and Flywheel/Drive Plate Assembly Overview

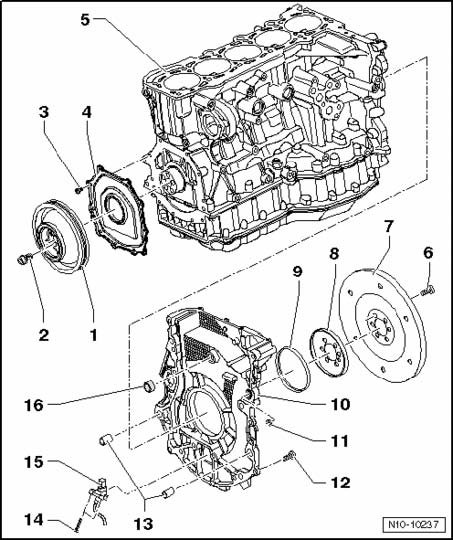

1 - Belt pulley/vibration damper
^ Multiple versions

2 - Screws
^ 5 pieces
^ Replace
^ Only use strength category 10.9
^ 50 Nm plus an additional 90° (1/4 turn)

3 - 10 Nm
4 - Sealing flange on belt pulley side
^ With integrated sealing ring

5 - Cylinder block
6 - 60 Nm plus an additional 90° (1/4 turn)
^ Replace

7 - Drive plate/flywheel
^ To remove, secure crankshaft using locking pin T40069.
^ Flywheel must not be pried out or timing housing cover will be damaged

8 - Sensor wheel
^ For Engine Speed (RPM) Sensor G28
^ With position holder

9 - Sealing ring, transmission side
10 - Control housing cover
11 - O-ring
12 - 25 Nm
13 - Fitting sleeves
14 - 5 Nm
15 - Engine speed (RPM) sensor G28
16 - Seal
