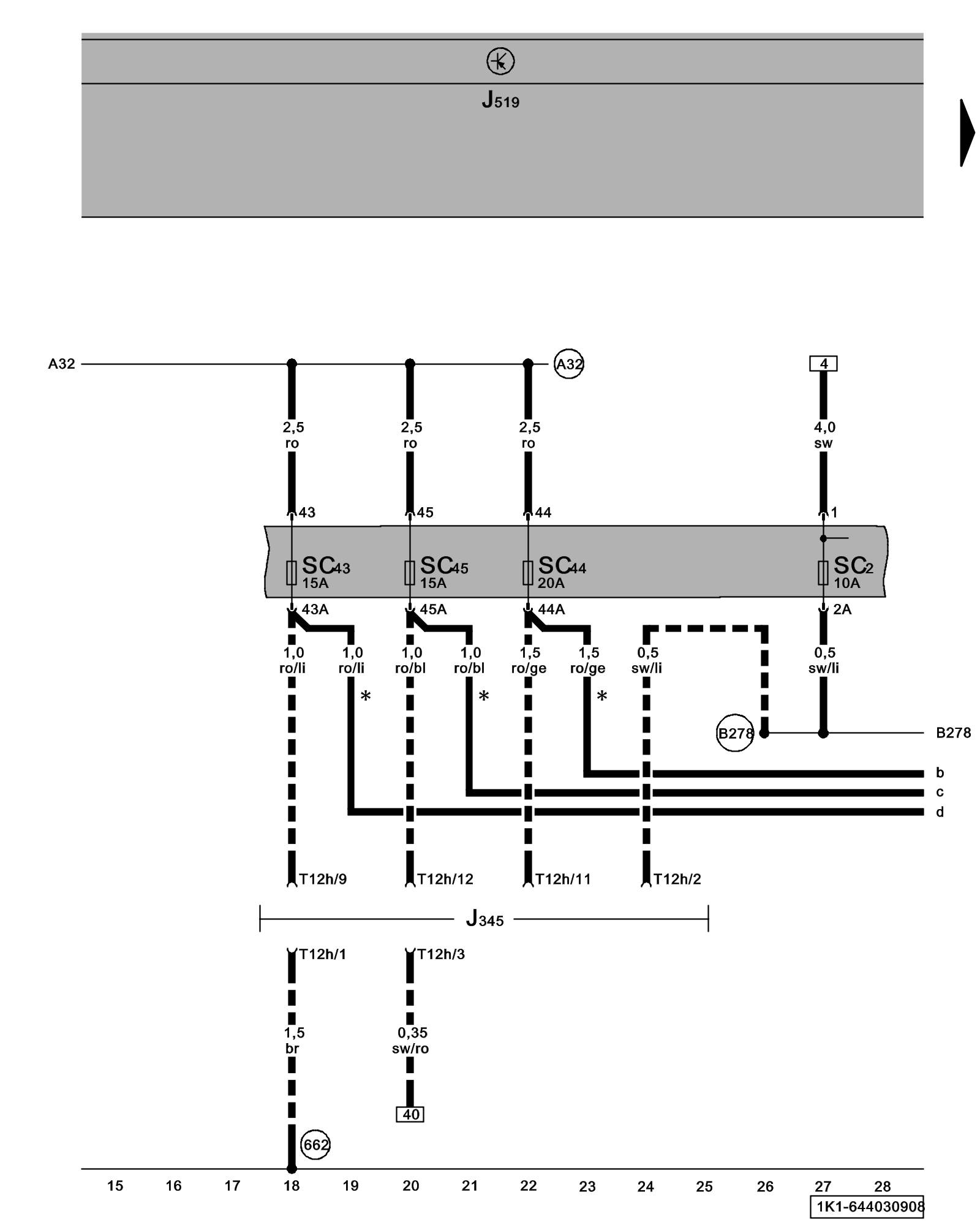

Diagram 644/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J345 - Towing Recognition Control Module

J519 - Vehicle Electrical System Control Module

SA5 - Fuse 5 (on fuse panel A) Overview Of Fuses (SA), (SB)

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

SC43 - Fuse 43 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

SC44 - Fuse 44 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

SC45 - Fuse 45 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

T12h - 12-Pin Connector, in left rear side panel

(662) - Ground Connection (on left rear C-pillar) Overview of Ground Connections In Luggage Compartment

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B278) - Plus Connection 2 (15a) (in main wiring harness)

* - Only models with factory trailer hitch

- - - - Only models with preparation for Trailer Operation
