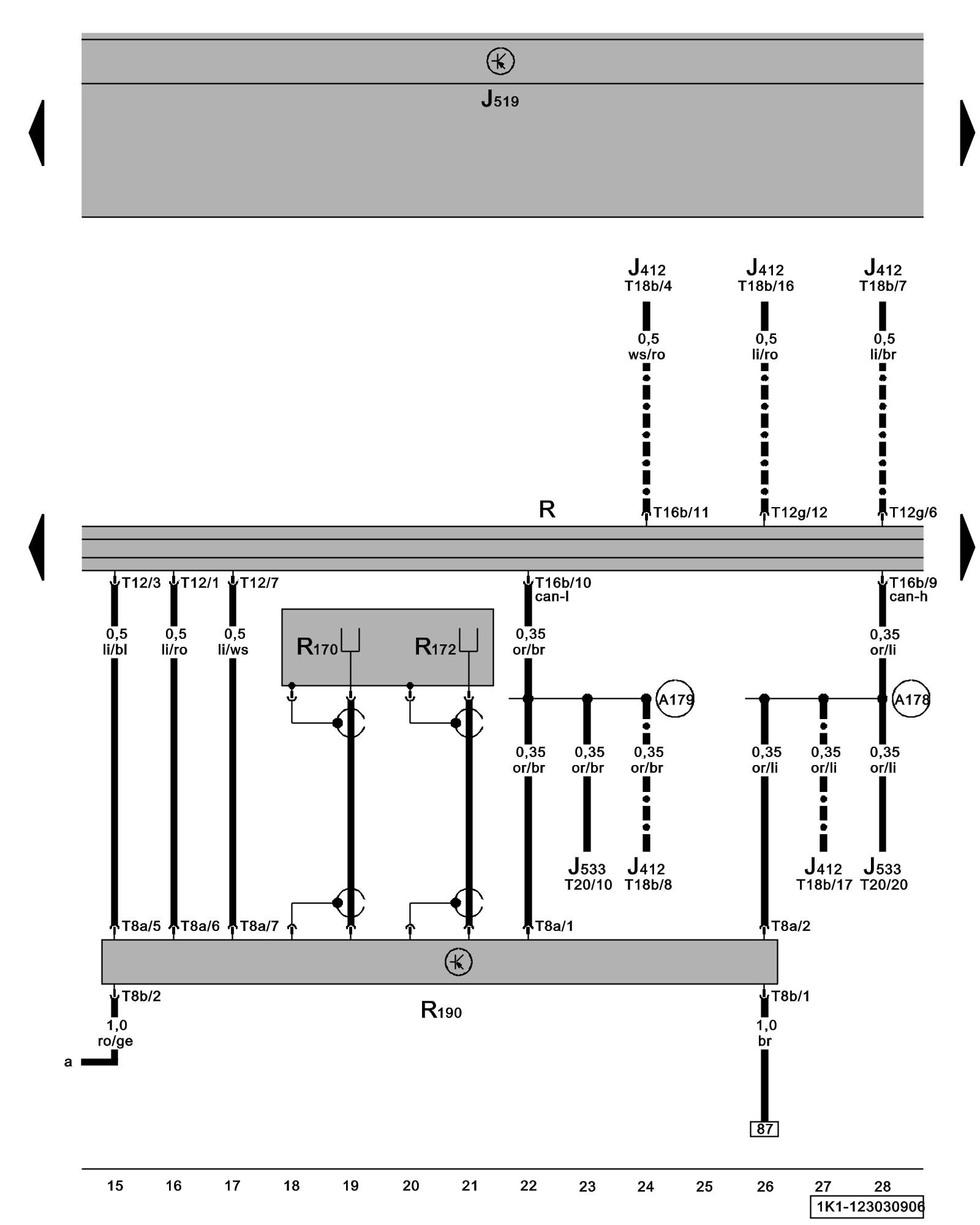

Diagram 123/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Digital Satellite Radio Tuner, Satellite Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J412 - Operating Electronics and Telephone Control Module** Radio / Navigation And Antenna Systems Overview

J519 - Vehicle Electrical System Control Module

J533 - Data Bus On Board Diagnostic Interface

R - Radio

R65 - Telephone Antenna

R170 - Satellite Antenna

R172 - Satellite Tuner Antenna Radio / Navigation And Antenna Systems Overview

R190 - Digital Satellite Radio Tuner Radio / Navigation And Antenna Systems Overview

T8a - 8-Pin Connector

T8b - 8-Pin Connector

T12 - 12-Pin Connector

T12g - 12-Pin Connector

T18b - 18-Pin Connector

T20 - 20-Pin Connector

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-bus Connection (in instrument panel wiring harness)

** - Components not available on system preparation

_ . _ . _ - Only models with Telephone preparation
