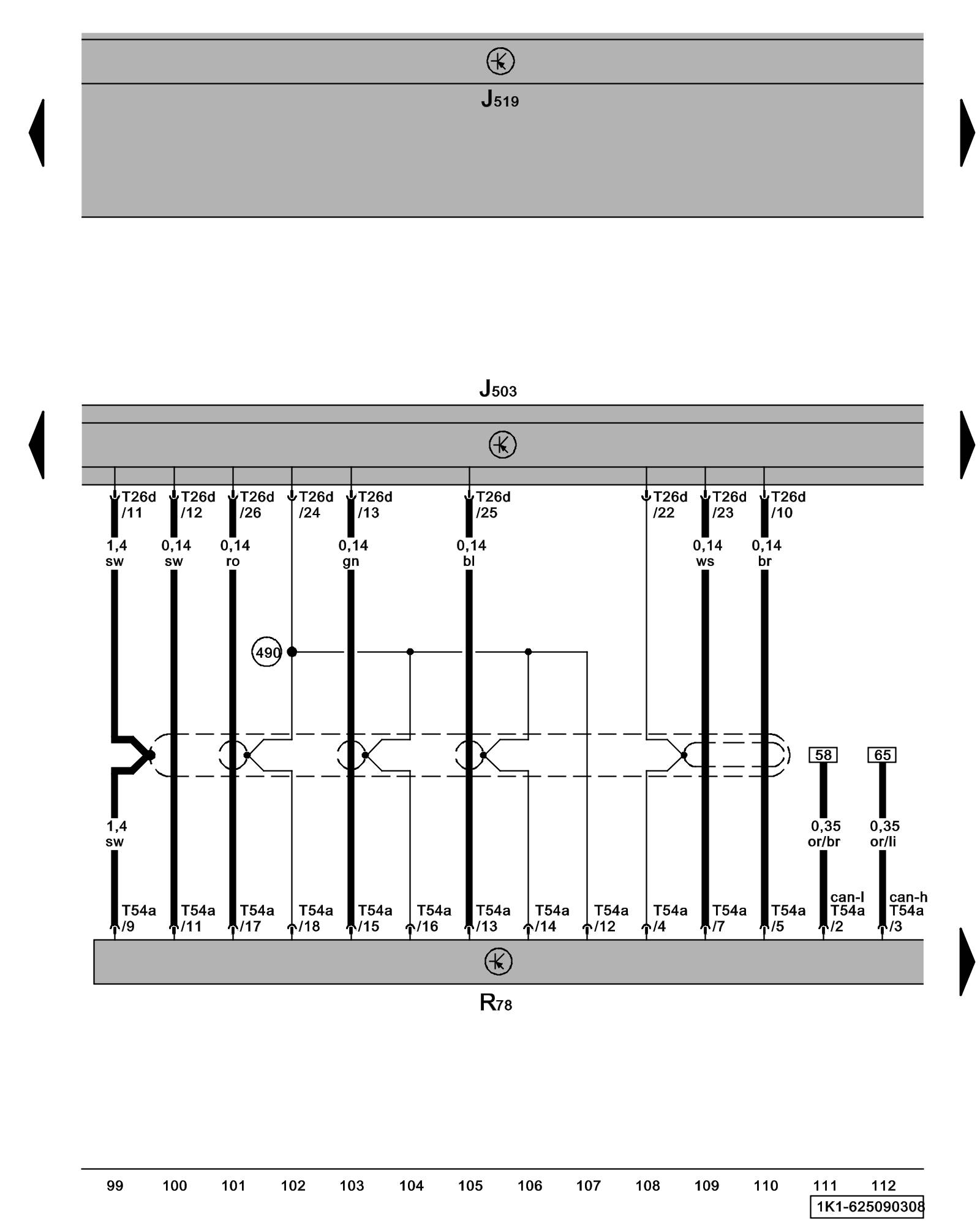

Diagram 625/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Control Module, TV Tuner





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Radio / Navigation And Antenna Systems Overview

J519 - Vehicle Electrical System Control Module

R78 - TV Tuner (in front right footwell) Radio / Navigation And Antenna Systems Overview

T26d - 26-Pin Connector

T54a - 54-Pin Connector

(490) - Shielding 2 Ground Connection (in radio/navigation system wiring harness)
