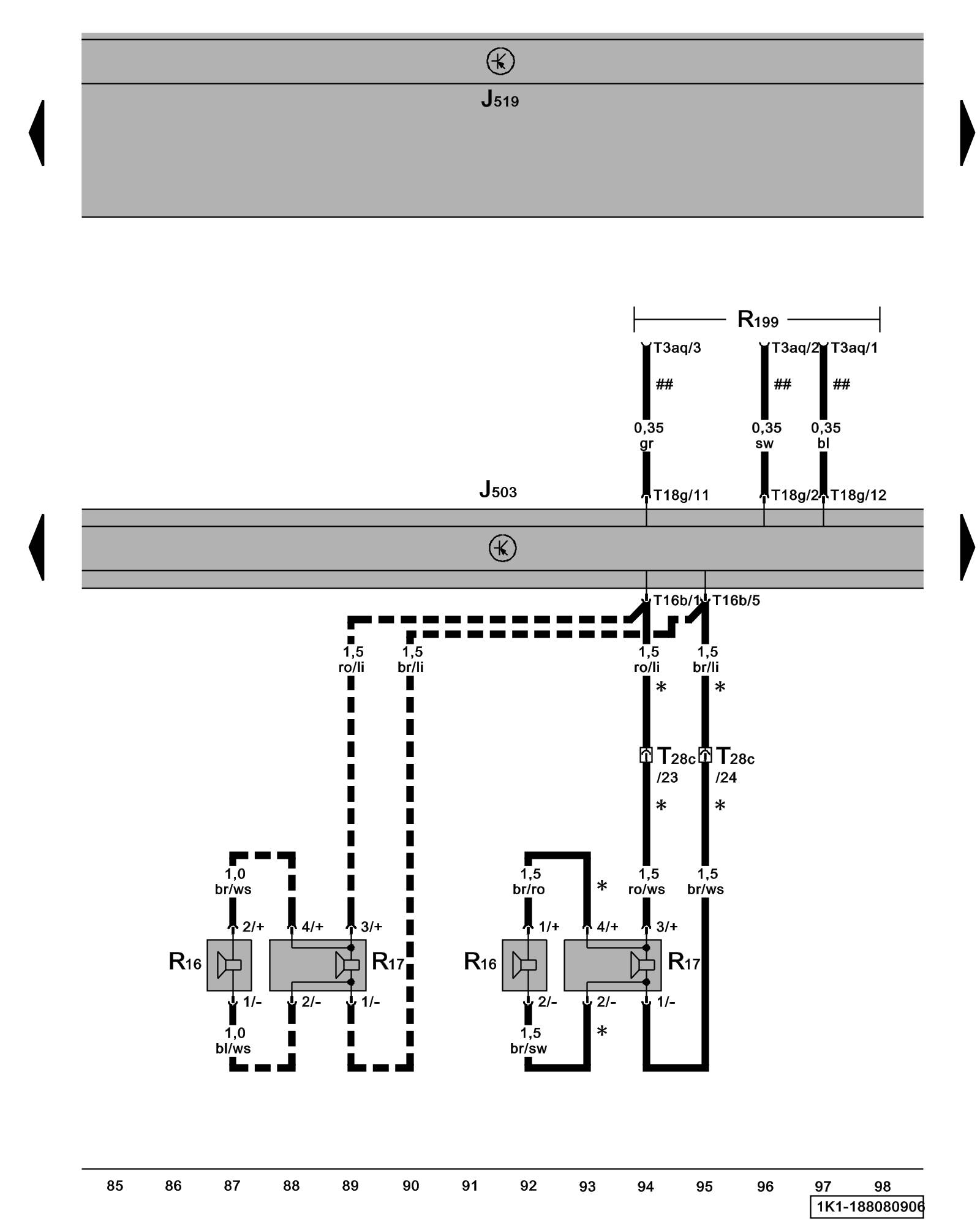

Diagram 188/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Control Module, Right Rear Speaker, External Audio Source Connector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Radio / Navigation And Antenna Systems Overview

J519 - Vehicle Electrical System Control Module

R - Radio

R16 - Right Rear Treble Speaker Radio / Navigation And Antenna Systems Overview

R17 - Right Rear Bass Speaker Radio / Navigation And Antenna Systems Overview

R199 - External Audio Source Connector Radio / Navigation And Antenna Systems Overview

T3aq - 3-Pin Connector, in glove compartment

T16b - 16-Pin Connector

T18g - 18-Pin Connector

T28c - 28-Pin Connector, connector station B-pillar, right

* - Only 4-door vehicles

- - - - Only 2-door vehicles

## - Only external audio connector, from November 2006
