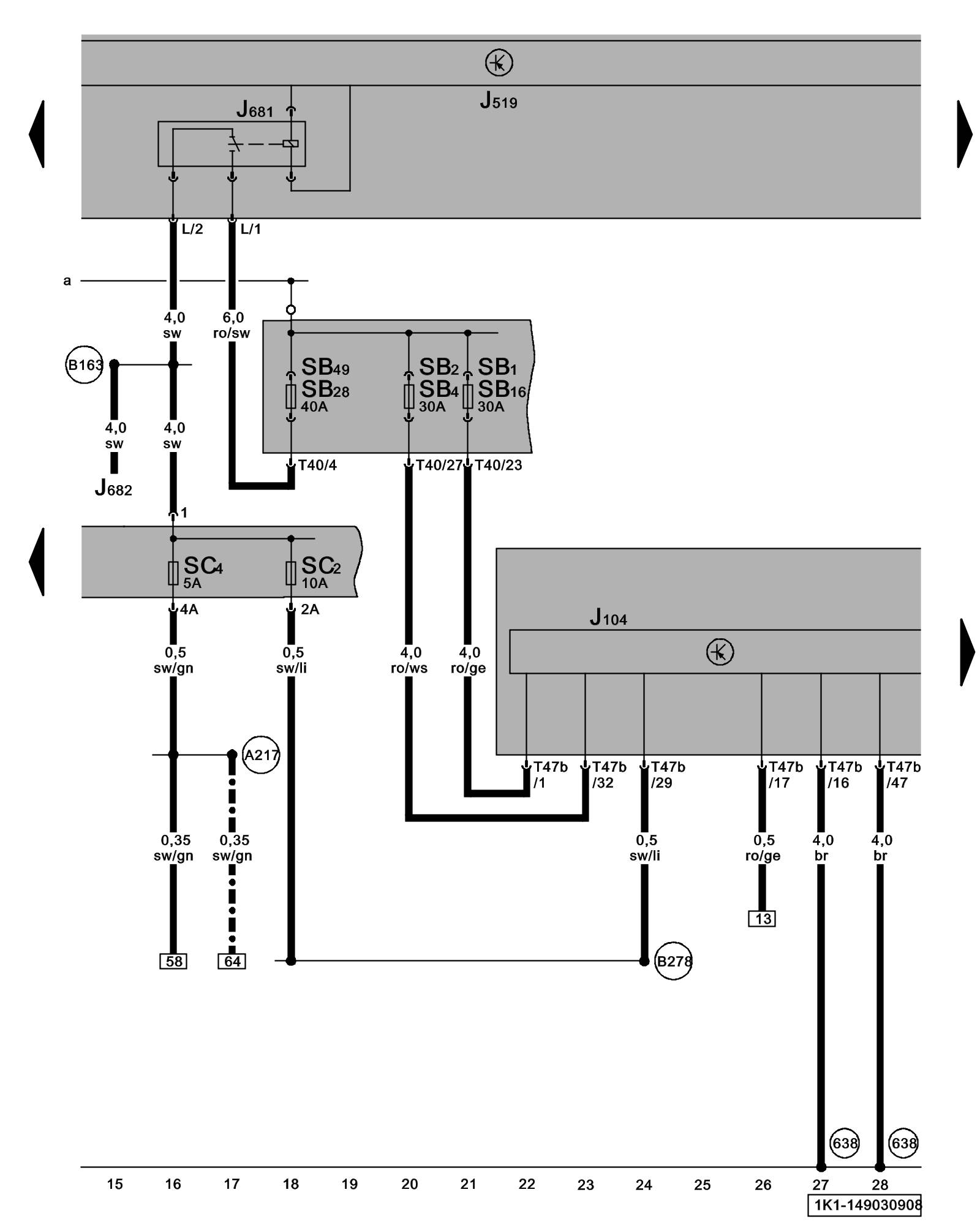

Diagram 149/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


ABS Control Module, Power Supply Relay 2 (terminal 15), Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS Control Module, in engine compartment, right Control Modules in Front Part of Vehicle

J519 - Vehicle Electrical System Control Module

J681 - Power Supply Relay 2 (terminal 15) Overview Of Relay Carrier

J682 - Power Supply Relay (terminal 50) Overview Of Relay Carrier

SB1 - Fuse 1 (on fuse panel B), electronics box High Overview Of Fuses (SA), (SB)

SB2 - Fuse 2 (on fuse panel B), electronics box High Overview Of Fuses (SA), (SB)

SB4 - Fuse 4 (on fuse panel B) Overview Of Fuses (SA), (SB)

SB16 - Fuse 16 (on fuse panel B) Overview Of Fuses (SA), (SB)

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses (SA), (SB)

SB49 - Fuse 49 (on fuse panel B), electronics box High Overview Of Fuses (SA), (SB)

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

SC4 - Fuse 4 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

T40 - 40-Pin Connector

T47b - 47-Pin Connector

(638) - Ground Connection (on right A-pillar) Overview of Ground Connections In Interior

(A217) - Plus Connection 8 (15a) (in instrument panel wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B278) - Plus Connection 2 (15a) (in main wiring harness)

_ . _ . _ - Only models with tire pressure monitoring display

Previous Diagram 149/2 (Tracks 1-14)

Next Diagram 149/4 (Tracks 29-42)
