Parking Brake Lever: Service and Repair

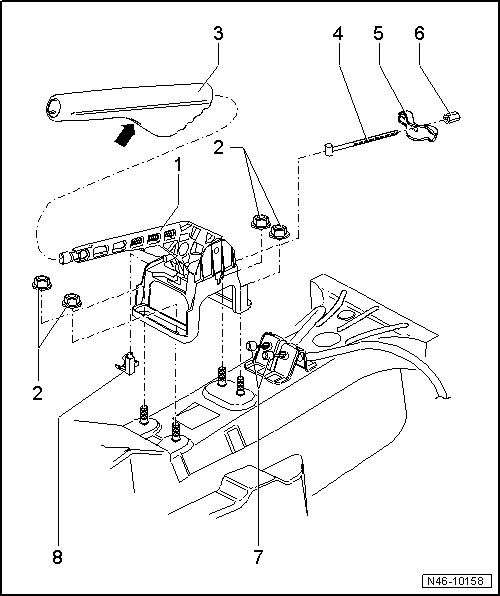

Parking Brake Lever Assembly Overview





1 Parking brake lever

• Remove center console before removing.

2 Hex nut, 15 Nm

3 Trim for parking brake lever

• Pull off forward.

• Pry off release tab in rear bottom handle area - arrow - with a screwdriver.

• With a leather version, leather in catch area is cut.

4 Relay rod

5 Compensator bracket

6 Adjustment nut

• Adjusting parking brake, refer to => [ Parking Brake, Adjusting ] Adjustments.

7 Parking brake cables

• Removing and installing, through MY 2007. Refer to => [ Parking Brake Cable, through MY 2007 ] .

• Removing and installing, from MY 2008. Refer to => [ Parking Brake Lever, from MY 2008 ] .

8 Parking brake switch
